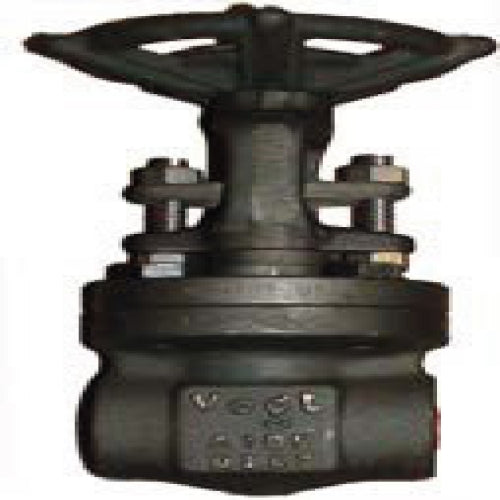

Vogt 12111SW.112 Class 800 Forged Carbon Steel Gate Valve 1-1/2 in Socket Weld

Product Description

The Vogt 12111SW.112 is a Class 800 forged carbon steel gate valve designed for demanding applications. This valve features a socket weld connection, allowing for easy installation in various piping systems. It operates efficiently in a fully open or closed position, ensuring reliable flow control.

• Connection size of one and a half inches
• Pressure rating of 1975 psi at one hundred degrees Fahrenheit
• ASME B16.34 and API 602 certified for high-quality standards

Product Highlights

The rugged construction ensures long-term operational safety in various applications.

Product Information

Standard Information

• Brand: Vogt
• Manufacturer: Vogt Valves

Technical Specifications

• Connection Size: 1-1/2 in
• Connection Type: Socket Weld
• Dimension: 4-3/4 in L
• Flow Coefficient: 91.6 Cv
• Item Name: Gate Valve
• Material Specifications: ASTM A105
• Material: Forged Carbon Steel
• Pressure Class: Class 800
• Pressure Rating: 1975 psi
• Series: 12111SW
• Temperature Rating: 100 deg F
