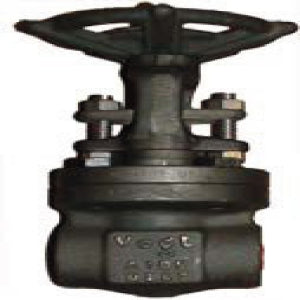

Vogt 12111SW 1/4 Gate Valve

Product Description

The Vogt 12111SW 1/4 is a forged steel socket weld gate valve. This valve is designed to provide reliable shut-off control in various piping systems. It is suitable for applications where leakage must be minimized. The conventional port design ensures a smooth flow through the valve.

• Conventional port for improved flow
• Rated for 1975 psi at 100°F
• Constructed from forged steel for durability

Product Highlights

The Vogt 12111SW 1/4 gate valve is equipped with a round bolted bonnet and a solid wedge for effective sealing. It features a spiral wound gasket and an outside screw and yoke design for easier operation.

Product Information

Standard Information

• Brand: Vogt
• Manufacturer: Vogt Valves

Technical Specifications

• Body Material: Forged Steel
• Nominal Size: 1/4 In
• Pressure Rating: 1975 psi @ 100°F
• Connection Type: Socket Weld
• Design Standard: ASME B16.34
