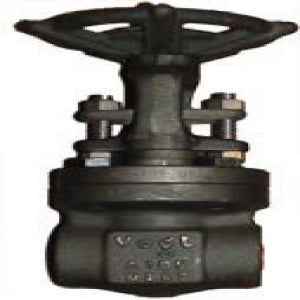

Vogt 121112 Gate Valve Class 800 2 in FNPT Replacement MPN

Product Description

The Vogt 121112 is a gate valve designed for robust performance in various applications. It features a connection size of two inches and a FNPT connection type. This valve operates in fully open or fully closed positions, ensuring efficient media flow while reducing pressure drop. The construction includes a carbon steel body and a bolted bonnet for durability.

• Operates in fully open or fully closed position
• Conventional-port with metal-to-metal seating
• Certified according to ASME B16.34 and API 602 standards

Product Highlights

This gate valve is ideal for high-pressure systems, handling up to 1975 psi at a temperature rating of one hundred degrees Fahrenheit.

Product Information

Standard Information

• Brand: Vogt
• Manufacturer: Vogt Valves

Technical Specifications

• Connection Size: 2 in
• Connection Type: FNPT
• Dimension: 5-1/4 in L
• Flow Coefficient: 117.6 Cv
• Material: Forged Carbon Steel
• Pressure Class: Class 800
• Pressure Rating: 1975 psi
• Temperature Rating: 100 deg F
• Standards/Certifications: ASME B16.34, API 602 certified
