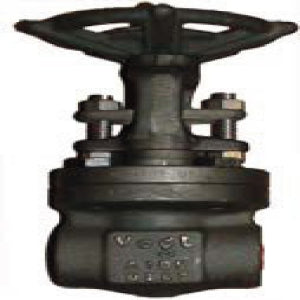

Vogt 1211111/4 Gate Valve Class 800 Forged Carbon Steel FNPT 12111 1 1/4

Product Description

The Vogt 1211111/4 Gate Valve is a Class 800 forged carbon steel valve designed for reliable performance. This valve is built for either fully open or fully closed positions, allowing for efficient media flow with minimal turbulence and pressure drop when open.

• Constructed from forged carbon steel for durability
• Designed for high pressure with a rating of 1975 psi
• Metal-to-metal sealing surfaces ensure efficient performance

Product Highlights

Ideal for applications requiring dependable shut-off service. This valve allows for smooth operation and has certifications ensuring its quality and compliance with industry standards.

Product Information

Standard Information

• Brand: Vogt Valves
• Manufacturer: Vogt

Technical Specifications

• Connection Size: 1-1/4 inches
• Connection Type: FNPT
• Dimension: 4-3/4 inches in length
• Flow Coefficient: 80.5 Cv
• Item Name: Gate Valve
• Material Specifications: ASTM A105
• Material: Forged Carbon Steel
• Pressure Class: Class 800
• Pressure Rating: 1975 psi
• Temperature Rating: 100 degrees F
• Series: 12111
