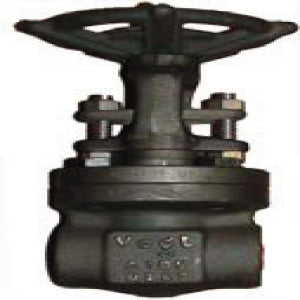

Vogt 1211111/2 Gate Valve Class 800 1-1/2 in FNPT

Product Description

The Vogt gate valve, MPN 1211111/2, functions effectively as a control device for liquids and gases. It is designed for fully open or fully closed operation, providing minimal turbulence during flow. This valve is made from forged carbon steel and is suitable for a variety of applications including piping systems in HVAC and plumbing environments.

• Designed for full flow with minimal pressure drop
• Constructed from durable forged carbon steel
• Certified to ASME B16.34 and API 602 standards

Product Highlights

The Vogt gate valve features a conventional port design and bolted bonnet, ensuring robust sealing and performance.

Product Information

Standard Information

• Brand: Vogt
• Category: Valves & Regulators

Technical Specifications

• Connection Size: 1-1/2 in
• Connection Type: FNPT
• Material: Forged Carbon Steel
• Pressure Class: Class 800
• Pressure Rating: 1975 psi
• Dimension: 4-3/4 in L
• Flow Co-Efficient: 91.6 Cv
• Temperature Rating: 100 deg F
