Vogt 12111.375 VOGT 3/8 Forged Steel Threaded Gate Valve

Product Description

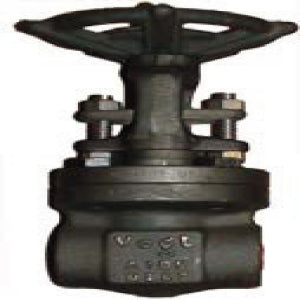

The Vogt 12111.375 is a forged steel threaded gate valve designed for effective control of fluid flow. It features a conventional port and is rated for 1975 psi at one hundred degrees Fahrenheit. This valve includes a round bolted bonnet, spiral wound gasket, and an outside screw and yoke configuration. The bolted gland and solid wedge contribute to its durability, while hard-faced seats ensure a reliable seal. This product meets the ASME B16.34 standard.

• Designed for high pressure up to 1975 psi
• Features a solid wedge and bolted bonnet for reliability
• Meets ASME B16.34 specifications

Product Highlights

This gate valve is effective for shut-off applications in plumbing and piping systems.

Product Information

Standard Information

• Brand: Vogt
• Manufacturer: Vogt Valves

Technical Specifications

• MPN: 12111.375
• Body Material: Forged Steel
• Nominal Size: 3/8 In
• Max Pressure: 1975 psi at 100°F
• Bonnet Type: Round bolted
• Gasket Type: Spiral wound
