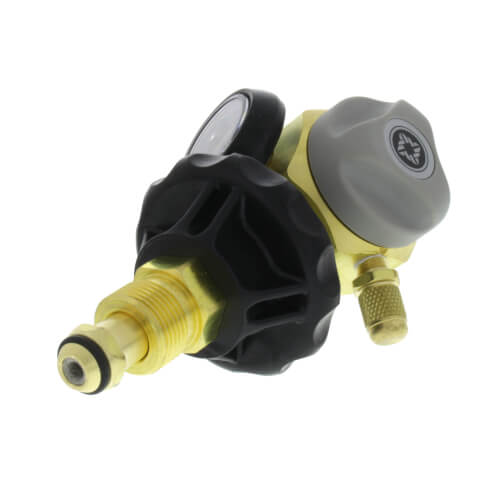

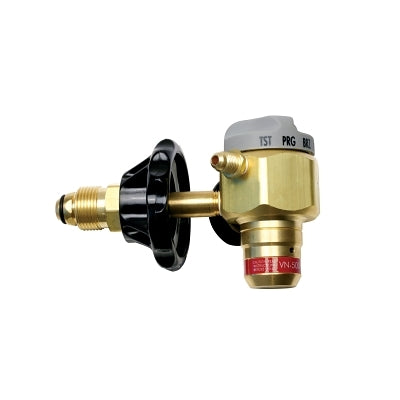

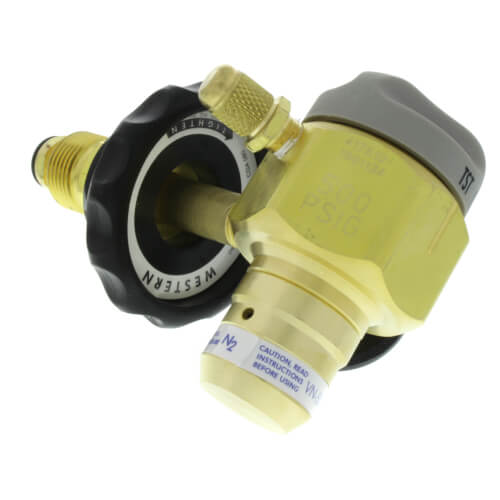

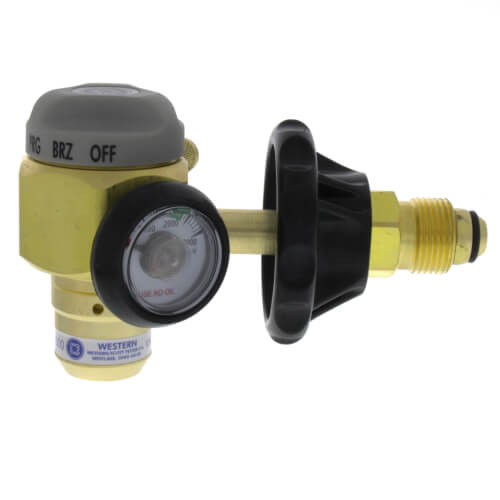

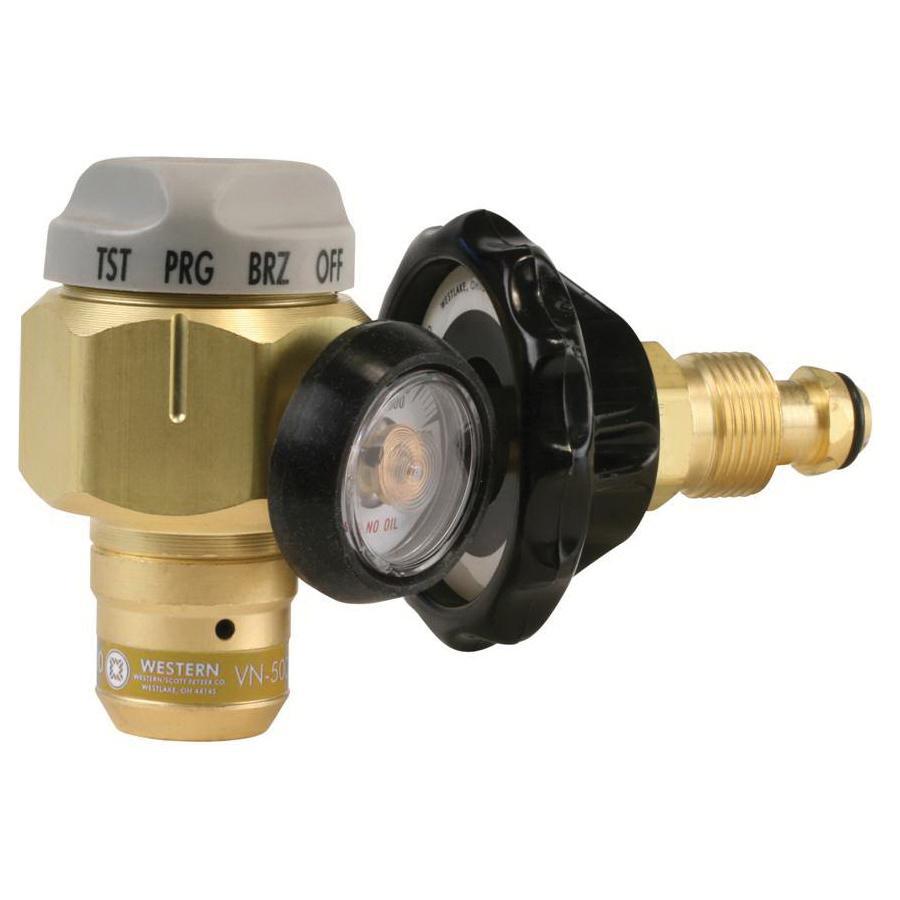

Western Enterprises VN-500 Nitrogen Purging/Test Regulator, 1/4 in SAE Male Flare Outlet

Product Description

Western Enterprises VN-500 is a nitrogen purging and test regulator designed for HVAC applications. It features a one-quarter inch SAE male flare outlet and a pressure range of zero to three thousand psi. This regulator simplifies nitrogen purging, brazing, and pressure testing in one compact unit.

• Hybrid design combining regulator and flowmeter.
• Preset settings for purge, braze, and test operations.
• Easy installation with no tools required; hand-tight cylinder connection.

Product Highlights

This unit is engineered for consistent performance and user-friendly operation, making it suitable for both experienced and novice technicians.

Product Information

Standard Information

• Brand: Western Enterprises
• MPN: VN-500

Technical Specifications

• Pressure Rating: 0 to 3000 psi
• Outlet Connection: 1/4 in SAE Male Flare
• Flow Capacity (Purge): 25 to 35 CFH
• Flow Capacity (Braze): 3 to 6 CFH
• Body Material: Heavy-duty brass
• Height: 8.125 inches
• Width: 3.7 inches
• Length: 8.5 inches
