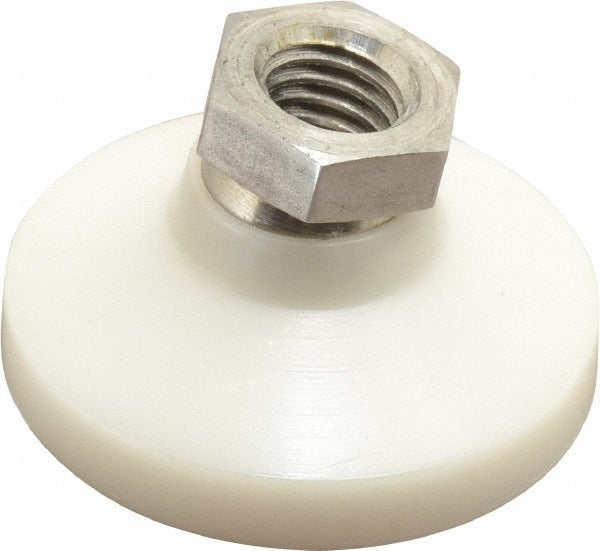

Vlier SSNP306B Tapped Pivotal Leveling Mount 700 Lb

Product Description

The VLIER SSNP306B is a tapped pivotal leveling mount designed for precise machine and equipment positioning on production floors, assembly lines, and industrial workstations. It features a stainless steel stud for corrosion resistance and a Delrin pad at the base to protect floor surfaces while providing a stable bearing point. The mount accepts a 1/2-13 threaded stud interface, carries a 700 lb static load capacity, and measures 1-7/8 inches in base diameter with an overall length of 1-1/8 inches. The pivoting pad design allows the foot to self-adjust to minor floor irregularities, maintaining full contact under load. Installation requires no special tooling beyond a standard 3/4-inch wrench for the hex flat.

This leveling mount is suited for light to medium-duty industrial equipment, machine bases, frames, enclosures, and fabricated assemblies that require leveling adjustability with a tapped mounting interface. The 1/2-13 thread size is common across a wide range of OEM equipment frames and aftermarket leveling applications. The Delrin pad makes this mount appropriate for use on finished concrete, tile, or coated floors where a metallic contact surface would cause marking or damage. It is typically specified by millwrights, machine installers, and maintenance technicians.

Key Features

• 700 lb load capacity for light to medium-duty equipment support
• Stainless steel stud resists corrosion in wash-down or humid environments
• Delrin pad provides floor protection and self-leveling contact
• 1/2-13 tapped thread fits common OEM and aftermarket equipment frames
• Compact 1-1/8 inch overall length suits low-clearance base applications
• 3/4-inch hex flat allows adjustment with standard wrenches

Compatibility

Designed as an OEM-style replacement or new-installation leveling mount for industrial equipment frames and machine bases using a 1/2-13 tapped thread interface.

Installation Notes

Installation is performed by millwrights or maintenance technicians as part of equipment leveling and alignment procedures. Thread the stud into the equipment base to the desired height, then adjust the mount to achieve level before tightening the locknut against the frame. Ensure the equipment is de-energized and any hydraulic or pneumatic systems are relieved of pressure before repositioning machinery on the mounts. Verify load is distributed evenly across all leveling points to avoid overloading any single mount.
