Vlier SPRSN375P Pull Ring Spring Plunger (3/8-16, 0.31 in thread)

Brand: VLIER
SKU: SPRSN375P
Availability: In Stock

Ships same day if ordered by 12 pm
$32.15
$32.15
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

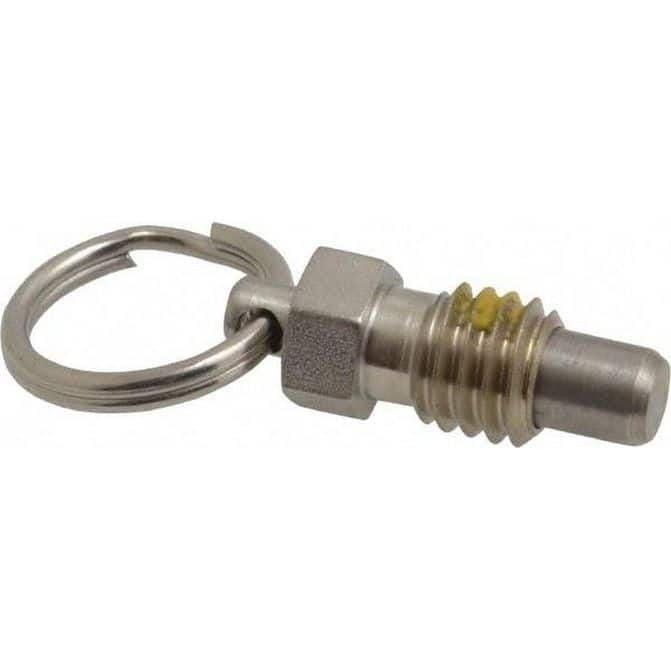

Vlier SPRSN375P is a hand-retractable pull-ring spring plunger constructed of stainless steel for precision positioning and manual indexing. The plunger uses a 3/8-16 body thread with a 7.9 mm (0.31 in) thread length, a 6.4 mm (0.25 in) nose/plunger diameter and an overall plunger length of 0.82 in. End forces measure approximately 0.3 kg (0.75 lb) initial and 1.4 kg (3.00 lb) final.

  • Hand-retractable pull-ring design with stainless steel body, nose, and handle
  • 3/8-16 thread with 7.9 mm (0.310 in) thread length; plunger diameter 6.4 mm (0.250 in) and projection 0.28 in
  • Initial end force ~0.3 kg (0.75 lb); final end force ~1.4 kg (3.00 lb); plunger length 0.82 in and body length 0.63 in

Product Highlights

Stainless steel pull-ring spring plunger for precision positioning and quick manual retraction

Product Information

Standard Information

  • Brand: VLIER
  • Manufacturer Part Number: SPRSN375P
  • Country of Origin: United States
Technical Specifications
Manufacturer
Vlier
Manufacturer Part Number
SPRSN375P
Brand
Vlier
Thread Size
3/8-16 in
Thread Length
7.9 mm (0.310 in)
Plunger (Nose) Diameter
6.4 mm (0.250 in)
Plunger Projection
0.28 in (0.2800 in)
Plunger Length
0.82 in
Body Length
0.63 in
Length Under Head
0.44 in
Ring Diameter
0.75 in (19.1 mm)
Initial End Force
0.3 kg (0.75 lb)
Final End Force
1.4 kg (3.00 lb)
Material
Stainless steel (body, nose, handle)
Handle Type
Pull ring handle
Plunger Type
Hand-retractable spring plunger
Hex Size
0.38 in
Head Height
0.19 in
Locking Options
Non-locking and thread-locking (variants available)
Locking Element
Yes
UNSPSC Code
31162900
Country of Origin
United States
Certifications
Manufacturer CofC, chemical & physical certificates, RoHS (available on request)
