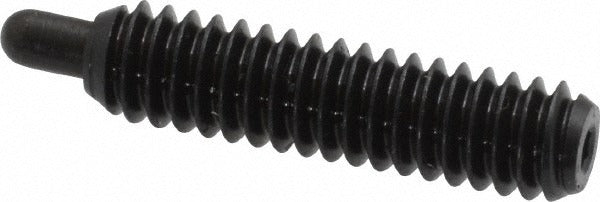

Vlier PH54 Threaded Spring Plunger 1/4-20 Steel

Product Description

The VLIER PH54 is a standard threaded spring plunger designed to provide controlled, repeatable positioning force in mechanical assemblies. Featuring a 1/4-20 thread with 1 inch of thread length and a 3/16 inch plunger projection, this unit delivers an initial end force of 3 pounds, a middle end force of 8 pounds, and a final end force of 13 pounds. The steel body and steel nose offer durability in industrial applications. Machinists, tool and die makers, and mechanical assembly technicians install this type of plunger into tapped holes to index, locate, or retain components through spring-loaded contact.

The PH54 is suited for use in fixtures, jigs, machine tool components, and precision mechanical assemblies where a compact, thread-in positioning element is required. The 1/4-20 thread size is a common standard that fits a wide range of fabricated and machined components. The standard-length plunger body makes it compatible with typical boss depths found in production fixtures and assembly tooling. No locking element is present, making installation and removal straightforward in applications where the plunger must be serviceable or adjustable in the field.

Key Features

• 1/4-20 thread with 1 inch thread length for secure installation in standard tapped holes
• 3/16 inch plunger projection with a minimum diameter of 0.117 inches and maximum of 0.118 inches
• Progressive force profile: 3 pounds initial, 8 pounds middle, 13 pounds final end force
• Steel body and steel nose construction for wear resistance in industrial environments
• No locking element for ease of installation and field serviceability
• Standard plunger length type for compatibility with conventional fixture boss depths

Compatibility

Designed as a standard OEM-style threaded spring plunger for use in machined fixtures, jigs, and mechanical assemblies utilizing 1/4-20 tapped holes.

Installation Notes

Installation is performed by threading the PH54 directly into a properly tapped 1/4-20 hole using a hex key sized to 0.079 inches across the hex flat. De-energize or lock out any machinery before servicing components in an active assembly. Ensure the mating hole is clean and free of debris before threading the plunger in to avoid damage to the nose or thread. Do not overtighten, as this can restrict plunger travel and reduce effective force output.
