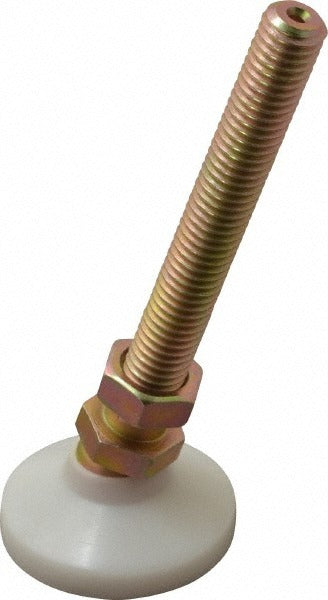

Vlier NP307S Studded Pivotal Leveling Mount 700 Lb

Product Description

The VLIER NP307S is a studded pivotal leveling mount designed for industrial equipment positioning and vibration isolation applications. The mount accepts a 1/2-13 bolt thread stud and features a Delrin pad on a steel stud assembly, providing a durable contact surface that protects equipment bases while allowing fine leveling adjustments. With a 700 lb load capacity and a 1-7/8 inch base diameter, this mount suits medium-duty machinery leveling tasks. Licensed millwrights, maintenance mechanics, and industrial installers typically select this hardware when setting equipment to precise floor-level tolerances.

This leveling mount is used in industrial and commercial settings where equipment must be leveled on uneven or finished floor surfaces. Typical applications include production machinery, fabrication equipment, workbenches, and other floor-mounted assemblies requiring stable, adjustable support. The pivotal design allows the pad to self-align to minor floor irregularities, maintaining consistent load distribution without concentrating stress at a single contact point.

Key Features

• 700 lb load capacity supports medium-duty industrial equipment
• 1/2-13 bolt thread stud for standard threaded-frame installation
• Delrin pad provides a low-friction, floor-protective contact surface
• Steel stud construction for strength and corrosion resistance in shop environments
• 1-7/8 inch base diameter for a stable, compact footprint
• Pivotal base self-aligns to minor floor surface variations

Compatibility

Designed as an OEM-style replacement or new-installation leveling mount for industrial machinery, workbenches, and floor-mounted equipment frames using 1/2-13 threaded mounting points.

Installation Notes

Installation is typically performed by a millwright or maintenance mechanic using standard hand tools. Thread the stud into the equipment frame to the required depth and secure with a jam nut where specified by the equipment manufacturer. Ensure the base pad contacts the floor surface fully before final tightening to allow proper load distribution. Do not exceed the rated 700 lb load capacity per mount.
