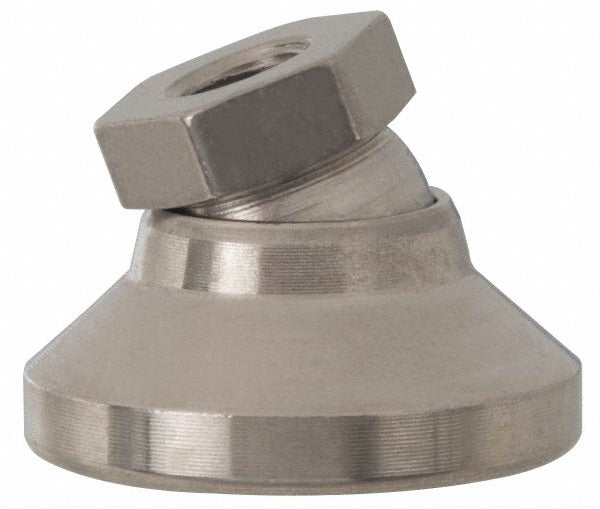

Vlier ESSP312B Tapped Pivotal Leveling Mount 16400 Lb

Product Description

The VLIER ESSP312B is a tapped pivotal leveling mount designed for heavy-duty industrial machinery positioning and vibration isolation applications. Built with a stainless steel stud and an elastomer pad, this mount accommodates a 1-8 thread size and supports a static load capacity of 16,400 pounds. The pivotal base design allows the foot to self-adjust to uneven floor surfaces, maintaining firm, level contact without requiring precision floor prep. Millwrights, maintenance mechanics, and industrial installers use this type of mount when setting machine tools, presses, compressors, and similar heavy equipment on production floors.

This leveling mount is suited for demanding industrial environments where corrosion resistance and high load-bearing performance are both required. The stainless steel stud provides durability in wet, chemical-exposure, or wash-down environments. The elastomer pad dampens vibration transmitted between the machine base and the floor, reducing noise and protecting adjacent equipment. The 4-inch base diameter distributes load across a wide contact footprint, making it appropriate for heavy stationary equipment installations in manufacturing, processing, and utility settings.

Key Features

• 16,400 lb static load capacity supports heavy industrial machinery
• Stainless steel stud offers corrosion resistance in harsh or wet environments
• Elastomer pad provides vibration damping and floor surface protection
• Pivotal base self-levels on uneven or slightly sloped floor surfaces
• 4-inch base diameter delivers broad load distribution underfoot
• 1-8 thread size compatible with standard heavy-duty machine base tapped holes

Compatibility

Designed as an OEM-style tapped pivotal leveling mount for heavy industrial machinery and equipment requiring a 1-8 threaded foot with a 4-inch base diameter elastomer pad assembly.

Installation Notes

Installation is typically performed by millwrights or maintenance mechanics as part of machinery commissioning or repositioning work. De-energize and lock out all power to the equipment before adjusting or replacing leveling mounts. Use a 1-3/8 hex wrench on the stud hex to thread the mount into the machine base tapped hole and level the equipment. Verify final load distribution across all mounting points before returning the machine to service.
