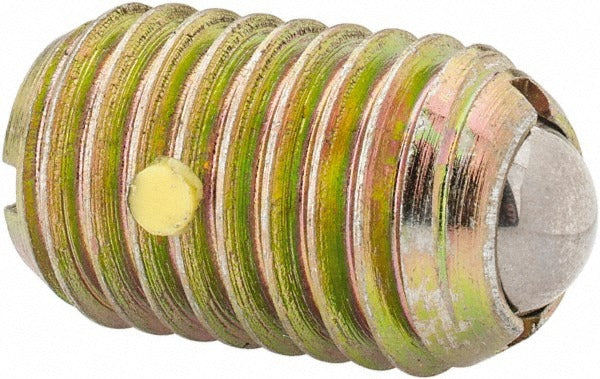

Vlier BH62N Threaded Ball Plunger 5/8-11 Steel Locking

Product Description

The VLIER BH62N is a threaded ball plunger designed for controlled end-force applications in precision mechanical assemblies. It features a 5/8-11 thread, a 0.375-inch steel ball diameter, and a 0.984-inch body length with a maximum ball reach of 0.096 inches. The unit delivers 7 pounds of initial end force and 50 pounds of final end force, making it well suited for indexing, positioning, and detent functions where repeatable force is required. A locking element is integrated into the design. The steel body and steel ball construction provide durability in demanding industrial environments. This is among the smallest and lightest spring-loaded devices available in this thread class.

The BH62N is used in machine tool fixtures, automation equipment, tooling jigs, and general industrial assemblies where a compact spring-loaded detent or positioning device is needed. Its 5/8-11 thread allows installation into standard threaded bores. The controlled end-force range makes it appropriate for light-duty to moderate-duty indexing tasks in both OEM production and field maintenance settings. Machinists, toolmakers, and mechanical assemblers are the primary installers of this component.

Key Features

• 5/8-11 thread size for installation into standard threaded bores
• 0.375-inch steel ball diameter for precise detent and positioning contact
• 7-pound initial end force and 50-pound final end force for controlled, repeatable actuation
• 0.096-inch maximum ball reach keeps the profile compact in tight assemblies
• Integrated locking element secures the plunger in place after installation
• Steel body and steel ball construction for durability in industrial environments

Compatibility

Designed for use in any application requiring a 5/8-11 threaded ball plunger with controlled end force, including tooling fixtures, automation equipment, and general industrial machinery.

Installation Notes

Installation is performed by threading the BH62N into a prepared 5/8-11 tapped hole using appropriate hand tools. Ensure the mating bore is clean and free of debris before installation. The locking element should be engaged per standard procedure to prevent loosening under vibration or cyclic load. Disengage or de-energize any powered equipment before servicing assemblies that contain this component.
