Vizio y8386392s Main Board M602i-b3 Tv Replacement

Product Description

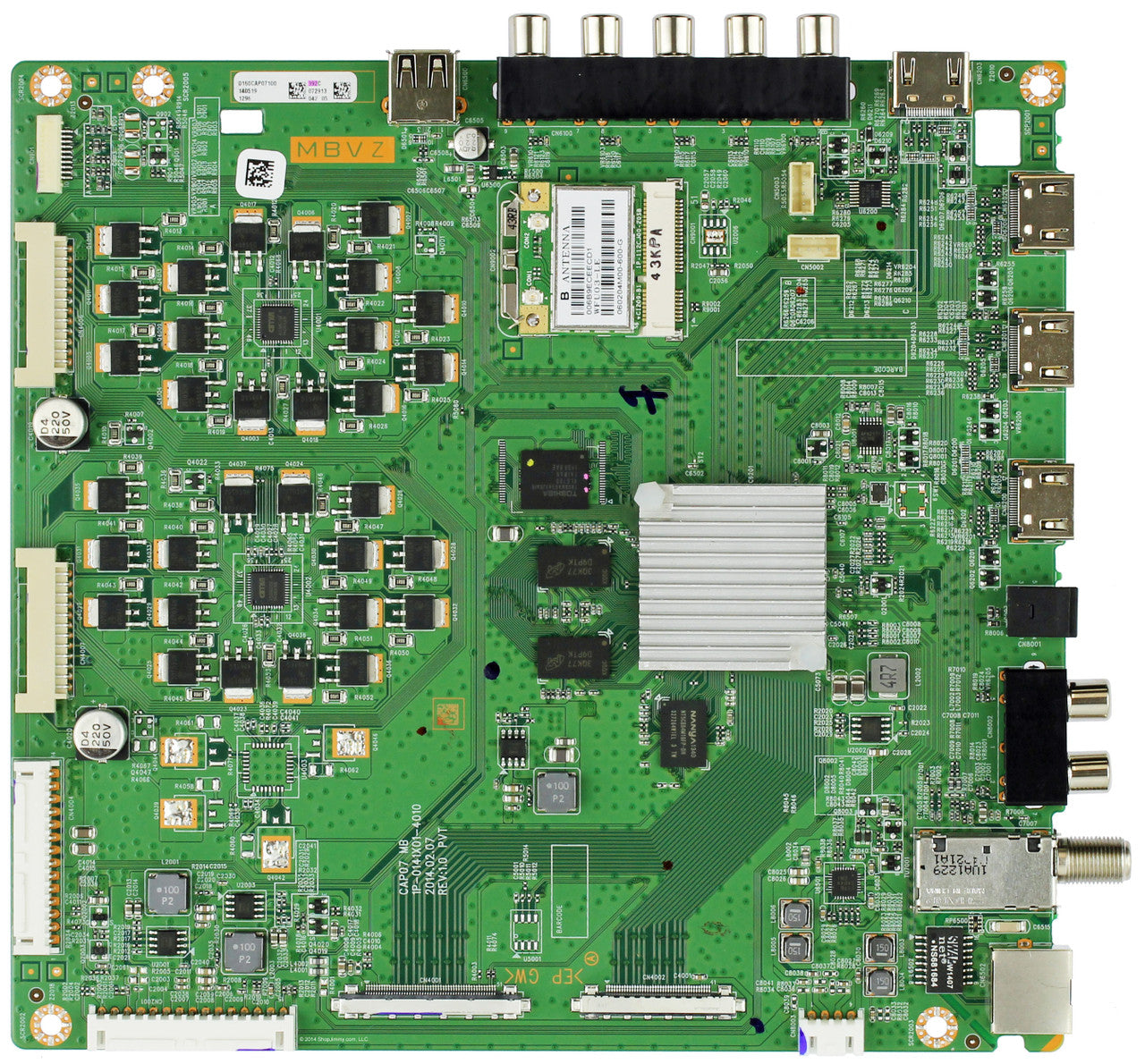

The VIZIO y8386392s is a replacement main board designed for specific VIZIO flat-panel televisions. The main board serves as the central processing unit of the television, managing video decoding, signal processing, and communication between the display panel and connected inputs. This board is identified by firmware version V1.34.23 and is sourced as a factory replacement component. Installation is typically performed by qualified electronics repair technicians or experienced service professionals working on consumer television systems.

This main board is intended for use in VIZIO television models requiring a direct OEM-style board replacement. It is suited to repair scenarios where the original main board has failed due to power surge damage, component failure, or firmware-related issues. The board restores core television functionality including input switching, image processing, and system control.

Key Features

• Direct replacement main board for compatible VIZIO television models
• Firmware version V1.34.23 pre-loaded on the board
• Handles core video processing and input management functions
• OEM-sourced component for reliable fitment

Compatibility

Designed as an OEM-style replacement main board compatible with the VIZIO M602i-b3 television, model configuration 01-60CAP071-00, firmware V1.34.23. Verify the full model number and board revision on the existing board before ordering.

Installation Notes

Installation should be performed by a qualified electronics repair technician. Disconnect the television from AC power and allow capacitors to discharge before handling any internal components. Handle the board by its edges to avoid electrostatic discharge damage to sensitive components. Refer to the television service manual for connector locations and proper seating procedures.

Technical Specifications

• Firmware Version: V1.34.23
• Compatible Model: M602i-b3
• Board Configuration: 01-60CAP071-00

Standard Information

• Brand: VIZIO
• Manufacturer Part Number: y8386392s
