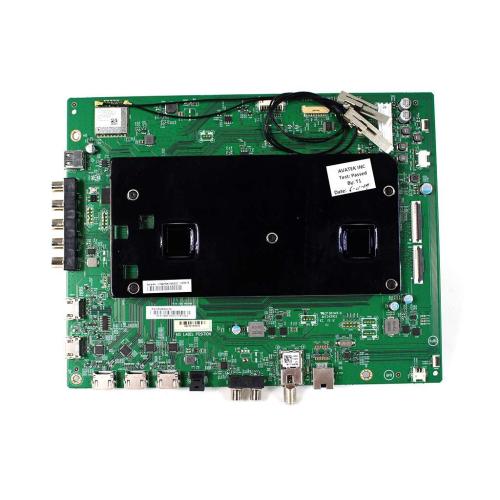

Vizio-tpv 756txjcb0qk004 Scaler Board Tv Part

Product Description

The VIZIO-TPV 756txjcb0qk004 is a scaler board designed as a direct replacement component for compatible VIZIO-TPV televisions. The scaler board is a core signal-processing assembly responsible for receiving raw video input, scaling the resolution to match the display panel, and outputting a clean image signal. When this board fails, symptoms typically include distorted or absent picture output despite valid signal input. Replacement of this board is performed by experienced electronics technicians comfortable working with consumer display assemblies.

This scaler board is intended for use in VIZIO-TPV television sets where the original 756txjcb0qk004 assembly has failed or been damaged. The board carries the internal reference designation CBPRITIKA6. Installation is suited to bench-level television repair environments where the technician has confirmed the scaler board as the failed component through proper diagnostic procedures prior to replacement.

Key Features

• OEM-style replacement scaler board for VIZIO-TPV television units
• Internal board designation CBPRITIKA6 for cross-reference identification
• Handles video signal scaling and processing functions within the display assembly
• Direct drop-in replacement for the original failed board where compatible

Compatibility

Designed as an OEM-style replacement scaler board for VIZIO-TPV television assemblies that originally used the 756txjcb0qk004 board. Confirm the exact board number printed on the original assembly before installation.

Installation Notes

Installation should be performed by a qualified electronics technician experienced with consumer television repair. Disconnect the television from all power sources and allow capacitors to discharge fully before opening the cabinet and handling internal boards. Use proper ESD precautions including a grounded wrist strap when handling the scaler board to prevent electrostatic damage. Do not force connectors or flex cables during reinstallation.

Technical Specifications

• Board Reference: CBPRITIKA6
• Part Type: Scaler Board

Standard Information

• Brand: VIZIO-TPV
• Manufacturer Part Number: 756txjcb0qk004
