Vizio 756TXJCB0QK015 Scaler Board Tv Replacement

Product Description

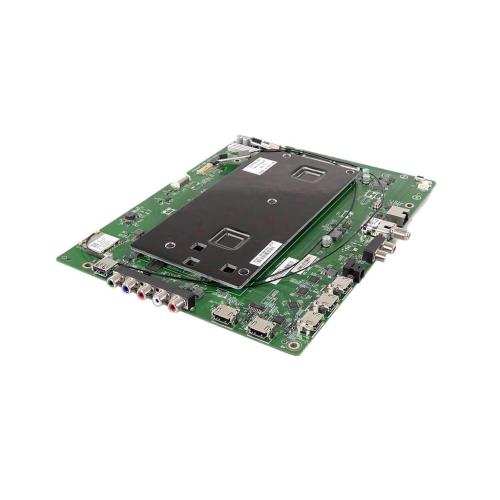

The VIZIO 756TXJCB0QK015 is a scaler board designed as a direct replacement component for VIZIO television sets. The scaler board processes and converts incoming video signals to match the native resolution of the display panel, ensuring accurate image output across input sources. This board is an internal PCB assembly typically replaced by qualified electronics technicians or experienced service professionals when image scaling, resolution, or display output issues are diagnosed at the board level.

This scaler board is intended for use in VIZIO consumer television sets where the original 756TXJCB0QK015 board requires replacement. It is suited for service center repairs or in-home service calls where a technician has identified the scaler board as the root cause of display or video processing faults. The reference designation CBPRITIKX8 may assist in cross-referencing this board within service documentation.

Key Features

• Direct OEM-style replacement scaler board for VIZIO television sets
• Handles video signal scaling and resolution conversion for the display panel
• Internal PCB assembly intended for board-level service repair
• Reference designation CBPRITIKX8 for service documentation cross-referencing

Compatibility

Designed as an OEM-style replacement scaler board for compatible VIZIO television models. Confirm the exact part number 756TXJCB0QK015 against the original board label before installation to verify fitment.

Installation Notes

Installation should be performed by a qualified electronics technician with experience in television board-level repair. Disconnect the television from mains power and allow capacitors to discharge before opening the chassis or handling internal components. Handle the PCB by its edges to avoid electrostatic discharge damage. Follow applicable safety standards for consumer electronics service when performing this repair.

Technical Specifications

• Component Type: Scaler Board (PCB Assembly)
• Reference Designation: CBPRITIKX8

Standard Information

• Brand: VIZIO
• Manufacturer Part Number: 756TXJCB0QK015
