VIKING VK486 Viking VK486 Residential Horizontal Sidewall Sprinkler

Product Description

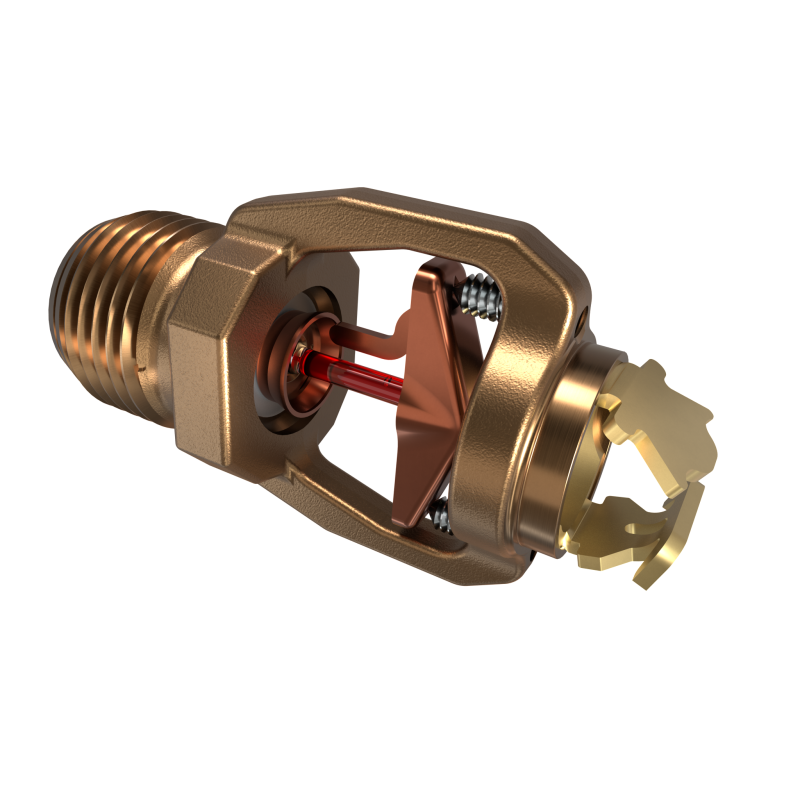

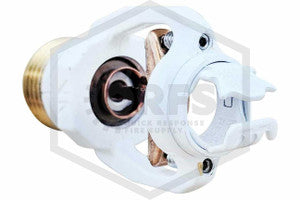

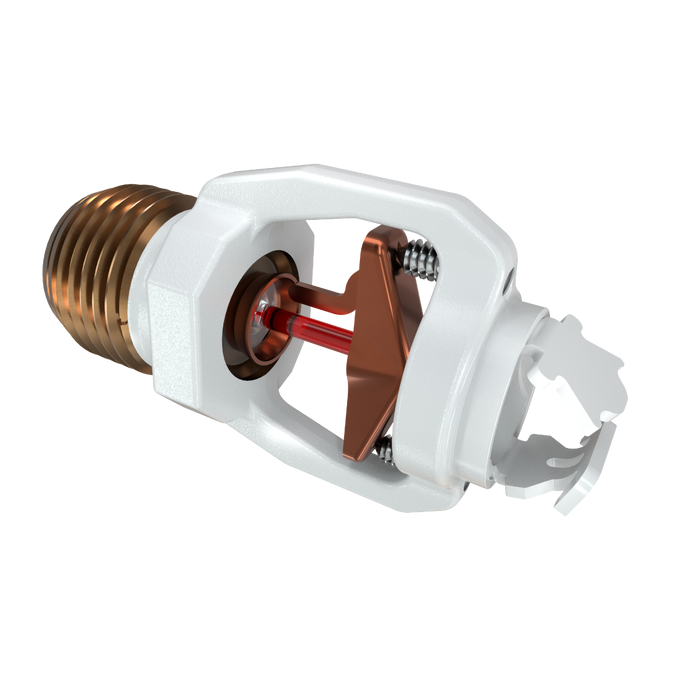

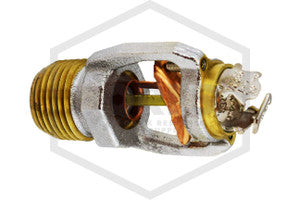

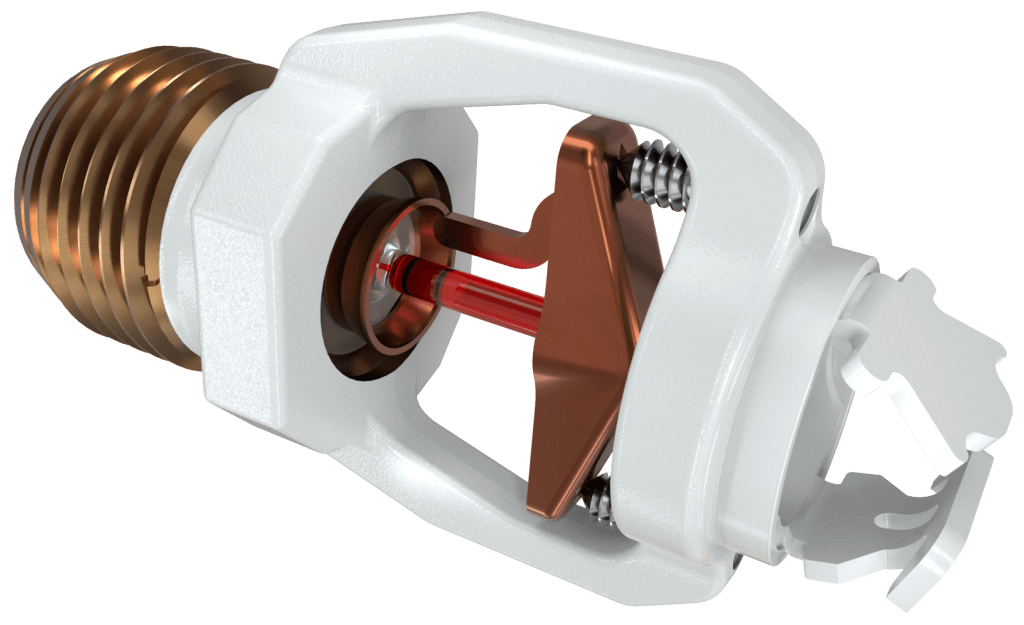

The Viking VK486 is a horizontal sidewall sprinkler designed for residential use. It features a heat-activated glass bulb that activates at a specified temperature. This sprinkler head has a K-Factor of four and connects using a half-inch NPT thread. The construction includes a brass frame and bronze deflector. It is UL Listed for residential occupancy with a maximum operating water pressure of one hundred seventy-five PSI.

• Horizontal sidewall orientation
• Residential response type
• Heat-activated glass bulb element

Product Highlights

The VK486 sprinkler provides reliable coverage and is suitable for various residential applications where fire safety is required.

Product Information

Standard Information

• Manufacturer: Viking
• MPN: VK486

Technical Specifications

• Head Type: Sidewall
• Orientation: Horizontal Sidewall
• K-Factor: 4.0
• Thread Size: 1/2 NPT
• Maximum Working Water Pressure: 175 PSI
• Temperature Activation: 155F
• Material: Brass Frame, Bronze Deflector
• Dimensions: 2.44 x 0.88 x 1.35 in.
