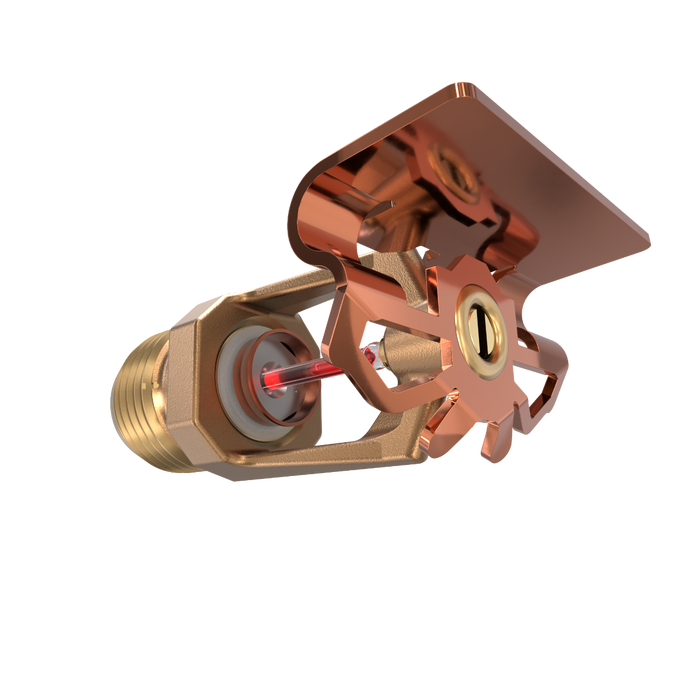

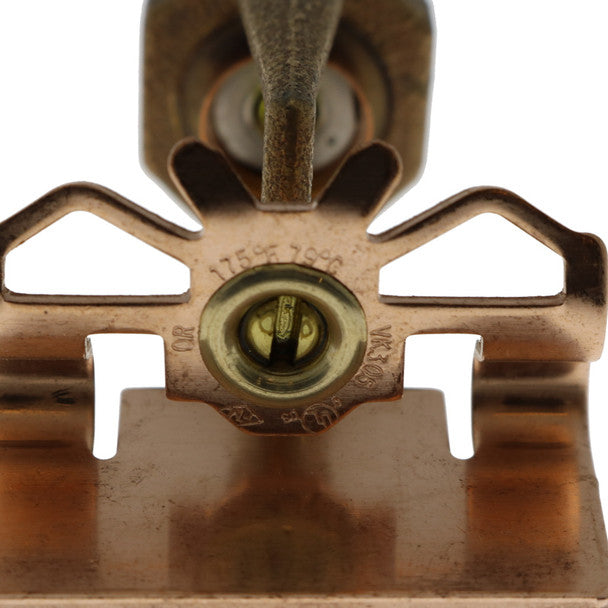

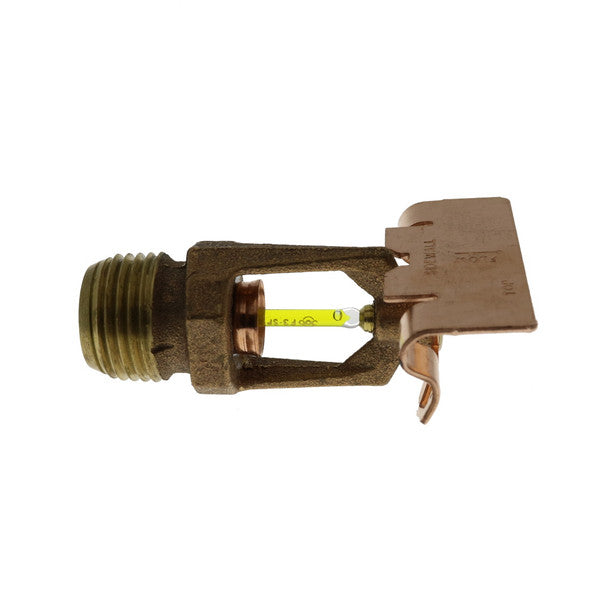

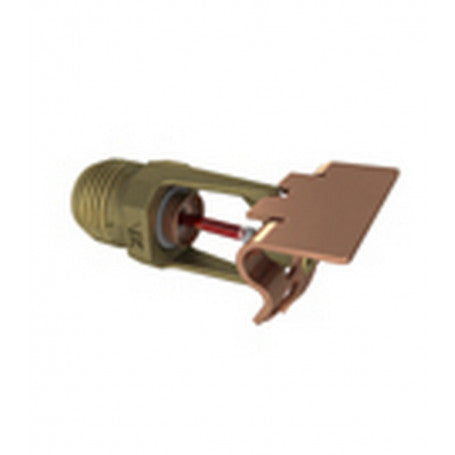

VIKING VK305 Microfast Quick Response Horizontal Sidewall Sprinkler

Product Description

The VIKING VK305 Microfast Quick Response Horizontal Sidewall Sprinkler is a thermosensitive glass bulb sprinkler designed for easy installation on walls. This sprinkler is a reliable solution for light and ordinary hazard occupancies, ensuring safety in various environments. It meets UL and FM standards, providing assurance of quality and performance.

• Quick response with a K-Factor of 5.6.
• 1/2 NPT thread size.
• Maximum pressure rated at 175 psi.

Product Highlights

Designed to activate at specified temperatures, this sprinkler offers effective coverage for fire safety.

Product Information

Standard Information

• Manufacturer: Viking
• Model: Microfast
• MPN: VK305

Technical Specifications

• Head Type: Sidewall
• Response Type: Quick Response
• K Factor: 5.6
• Thread Size: 1/2 NPT (15 mm BSP)
• Temperature Rating: 155F
• Material: Brass Frame, Copper Deflector
• Maximum Working Pressure: 175 psi
• Dimensions: 2.75 inches x 1.65 inches x 1 inch
• Weight: 0.2 lb
