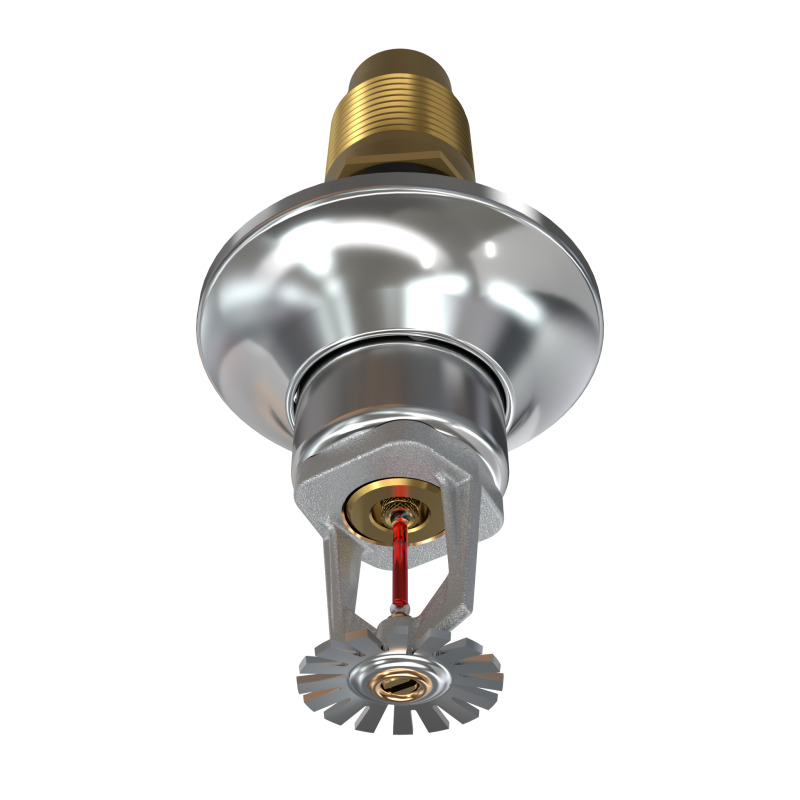

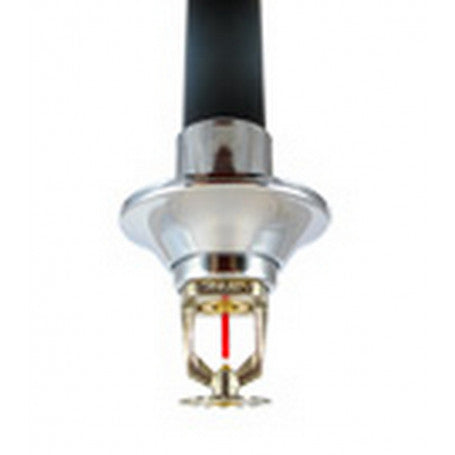

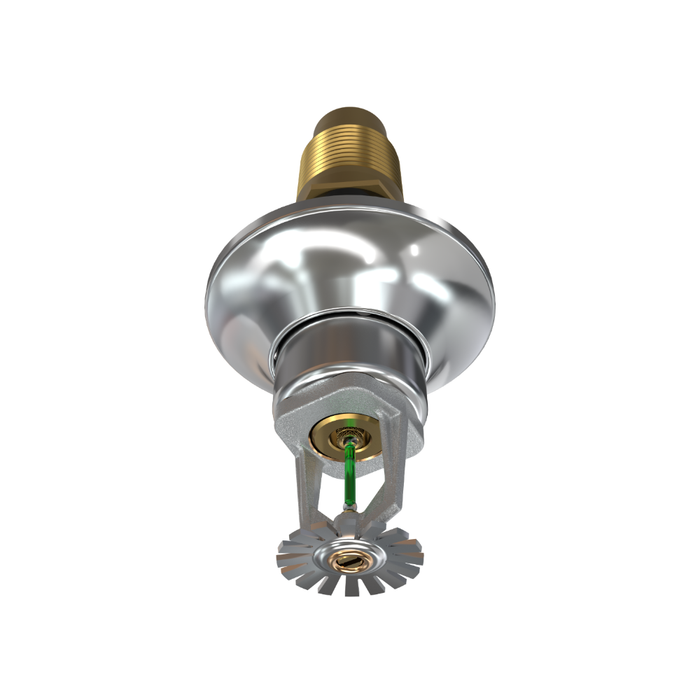

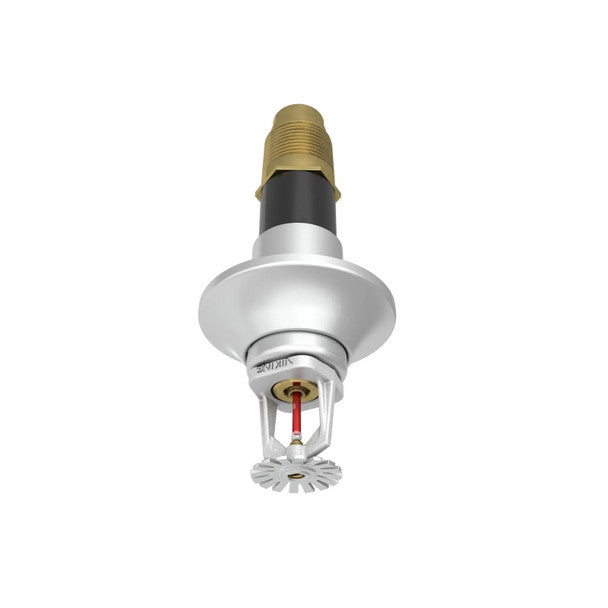

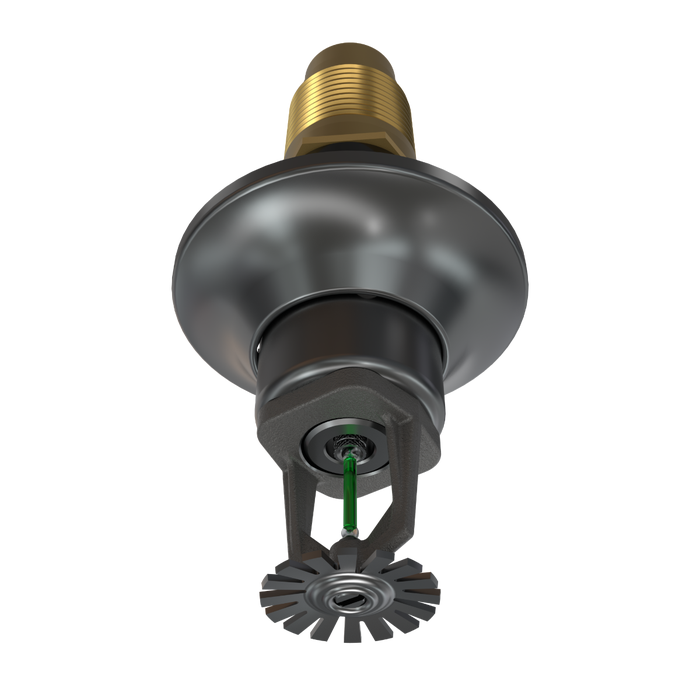

VIKING VK176 Quick Response Dry Pendent Sprinkler K5.6

Product Description

The VIKING VK176 is a thermosensitive spray sprinkler designed to perform in environments at risk of freezing. This product is apt for dry and preaction systems, effectively stopping water or condensation from entering the drop nipple prior to operation. It can also be set up in locations exposed to freezing temperatures and connected to a wet system from a heated area. The sprinkler is equipped with a glass bulb element and comes in various configurations.

• Ideal for dry and preaction systems.
• Effective in freezing temperature conditions.
• Equipped with a glass bulb element.

Product Highlights

This sprinkler is designed for quick response in light and ordinary hazard occupancies.

Product Information

Standard Information

• Brand: VIKING
• MPN: VK176

Technical Specifications

• K-Factor: 5.6 (81)
• Maximum Working Pressure: 175 psi (12 bar)
• Response Type: Quick
• Occupancy Type: Light Hazard, Ordinary Hazard
• Thread Size: 1 NPT (25 mm BSP)
• Minimum Spacing: Per Standards / Listings
• Maximum Spacing: Per Standards / Listings
• Orientation: Pendent
• Element Type: Glass Bulb
