VIKING 12997FE Viking VK305 Microfast Quick Response Horizontal Sidewall Fire Sprinkler

Product Description

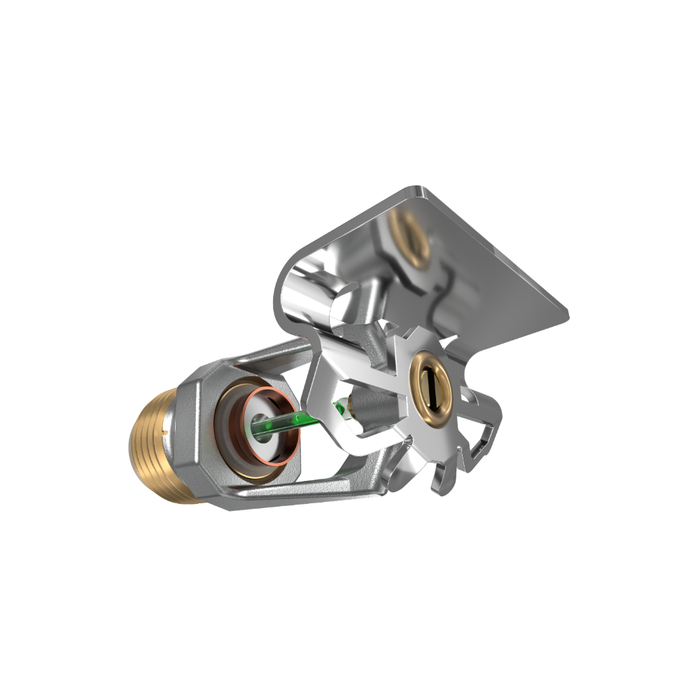

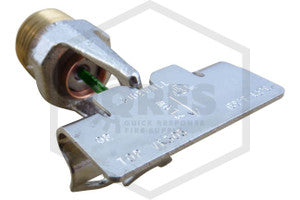

The Viking VK305 Microfast is a quick response fire sprinkler with the MPN 12997FE. This horizontal sidewall design is suitable for standard coverage in various settings. It features a K-Factor of 5.6, making it effective in fire suppression. The sprinkler comes with half-inch NPT threads and uses a glass bulb that activates at two hundred degrees Fahrenheit.

• Quick response mechanism for reliable safety.
• Brass frame with copper deflector for durability.
• UL Listed and FM Approved for safety standards.

Product Highlights

Designed for installation according to NFPA 13, the VK305 sprinkler fits light and ordinary hazard applications.

Product Information

Standard Information

• MPN: 12997FE
• Brand: Viking

Technical Specifications

• Head Type: Sidewall
• Orifice Size: 1/2 in.
• K Factor: 5.6K
• Response Type: Quick Response
• Temperature Rating: 200F
• Heat Element: Glass Bulb
• Coverage: Standard Coverage
• Material: Brass Frame, Copper Deflector
• Maximum Working Water Pressure: 175 PSI
• Escutcheon Type: Recessed or Surface Mounted
• Dimensions: 2.75 in. x 1.65 in. x 1 in.
• Finish: Chrome
• UL Listed: Yes
• FM Approved: Yes
