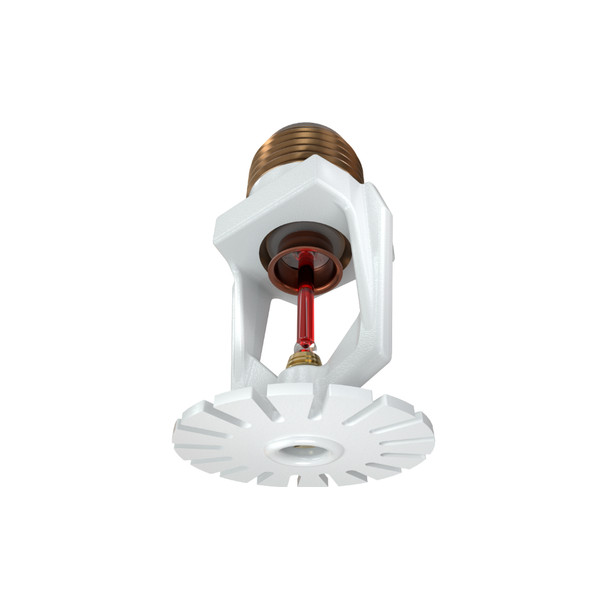

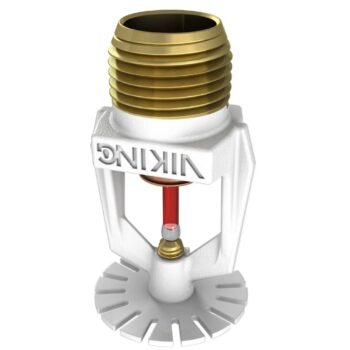

VIKING 09530MB/W VK430 Freedom Residential Pendent Fire Sprinkler

Product Description

The VIKING 09530MB/W is a VK430 Freedom residential pendent fire sprinkler designed for effective fire protection in residential spaces. This sprinkler activates at a temperature of 155F (68C), ensuring quick response to fire hazards.

• Residential pendent sprinkler head
• Activates at 155F (68C)
• Standard coverage with a K-Factor of 4.3

Product Highlights

This sprinkler head connects to wet piping systems with half-inch NPT threads. It is constructed with a brass frame and deflector and finished with white polyester coating. The maximum working water pressure is 175 PSI, and it is UL Listed for residential applications, ensuring reliability in critical situations.

Product Information

Standard Information

• Manufacturer: Viking Group Inc.
• Condition: New

Technical Specifications

• Manufacturer Part Number: 09530MB/W
• SIN: VK430
• Model: Freedom
• Head Type: Pendent
• Finish: White Polyester
• K Factor: 4.3
• Response Type: Residential
• Temperature Activation: 155F
• Heat Element: Glass Bulb
• Coverage: Standard Coverage
• Material: Brass Frame, Brass Deflector
• Corrosion Resistant: Yes
• UL Listed: Yes
• Maximum Working Water Pressure: 175 PSI
• Thread Size: 1/2 in. NPT
• Weight: 0.17 lbs
• Dimensions: Length 1.25 in., Width 1.25 in., Height 2.25 in.
