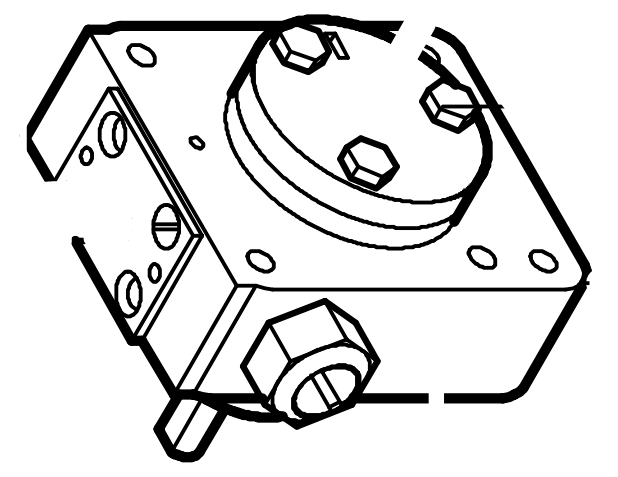

VIESSMANN 7822086 Suntec Fuel Pump 110 Volt

Product Description

The Viessmann 7822086 Suntec Fuel Pump is suitable for use with Vitoflame 100 models, specifically VEM 18, VEM 22, VEM 33, and VEM 40. This single-stage pump includes an electromagnetic valve for shut-off purposes. It effectively supports diesel burners utilized in heating systems for both residential and commercial settings.

• Automatic air discharge with a dual-pipe connection
• Smooth adjustment of fluid pressure ranging from eight to fifteen bar
• Bushing mounting design with a seat size of thirty-two millimeters

Product Highlights

This pump is designed for efficient performance in heating applications, providing reliable fuel delivery.

Product Information

Standard Information

• Brand: Viessmann
• MPN: 7822086

Technical Specifications

• Solenoid valve voltage: 220 - 240 V, 50/60 Hz
• Type of pumped liquid: Diesel fuel
• Pump series: AL with pressure regulation and locking solenoid valve
• Model type: One stage with solenoid valve
• Nozzle pressure range: From eight to fifteen bar
• Installation method: Bushing, thirty-two millimeters
• Shaft rotation direction: Counterclockwise
• Nozzle output: Three point one seven five millimeters
• Capacity: Forty liters per hour at eleven bar
• Suction and return line: Six point three five millimeters NPTF
• Bypass plug installation: Installed for two-pipe system
• Shaft construction: One cavity
• Manometer port: Three point one seven five millimeters
• Valve function: Pressure regulation
• Mesh filter: Open area of six square centimeters
• Mesh filter hole size: One hundred fifty micrometers
• Shaft diameter: Eight millimeters
• Factory pressure settings: Nine bar
• Operating viscosity: From two to twelve millimeters squared per second
• Fuel temperature: Maximum sixty degrees Celsius
• Maximum solenoid valve pressure: Twenty-five bar
• Suction height: Maximum zero point four five bar vacuum
• Rated speed: Two thousand eight hundred fifty RPM
• Maximum speed: Three thousand six hundred RPM
• Torque: Zero point one Newton meter
• Solenoid valve consumption: Nine watts
• Dust and moisture protection class: IP54
