Viessmann 7722779 Gas Boiler Water 120K 95%

VIESSMANN
Brand: VIESSMANN
SKU: 7722779
Availability: In Stock

Ships via freight in 1-3 business days

%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
$6,021.38
$6,021.38
LTL Delivery

This product weighs 143 lb each and will be shipped via LTL carrier. A lift gate option will be added free of charge for your convenience.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

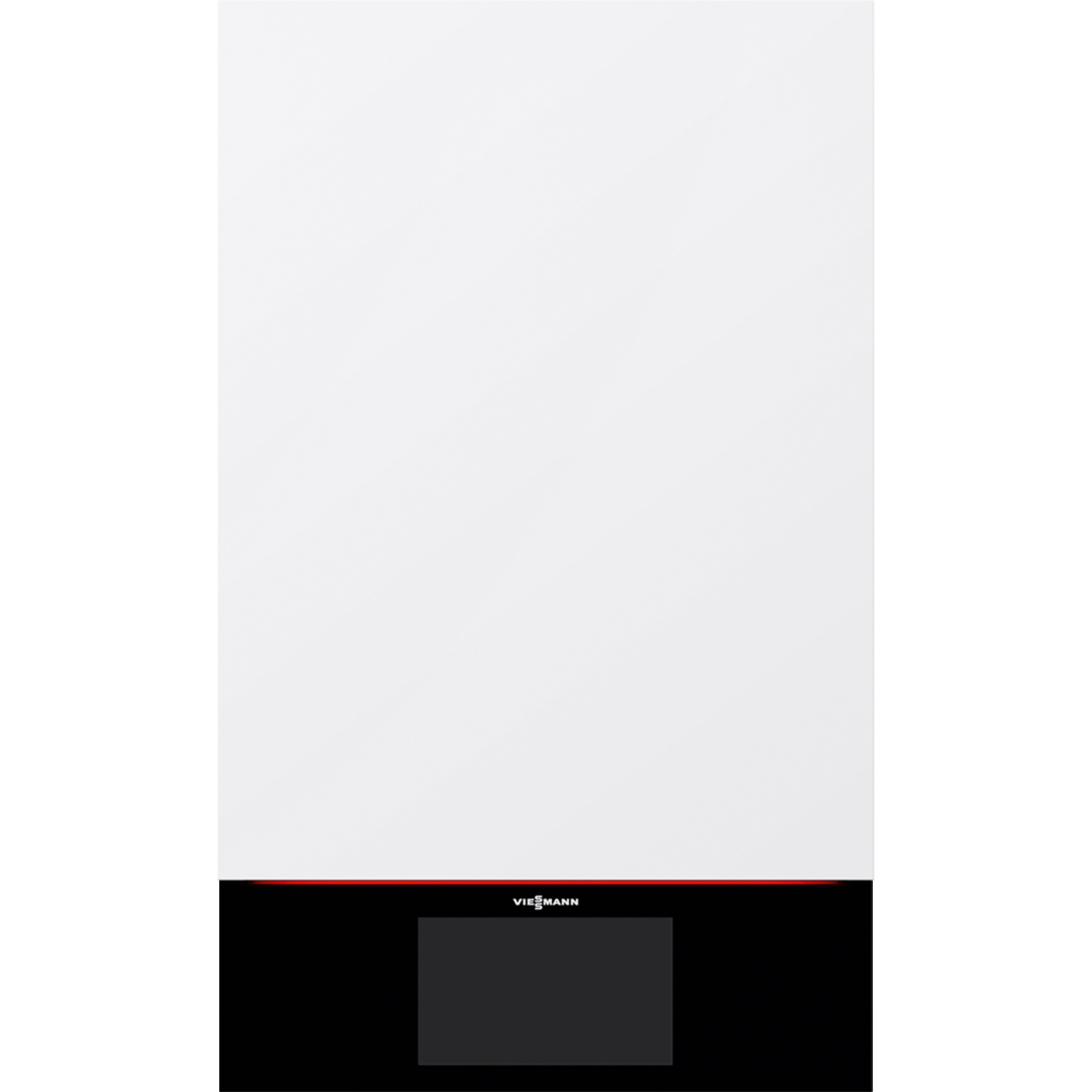

The VIESSMANN 7722779 Gas Boiler Water is a B2HE-120 model with a 120K BTU rating and 95% efficiency. This wall-mounted, gas-fired condensing hydronic boiler is designed for heating applications. It features a stainless steel Inox-Radial heat exchanger and a MatriX-Plus modulating cylinder burner. The unit operates on natural gas or LP gas and has a 120,000 BTU input. It is suitable for residential or commercial use.

  • Operates with natural gas or LP gas, offering a 120,000 BTU input and 95% AFUE efficiency.

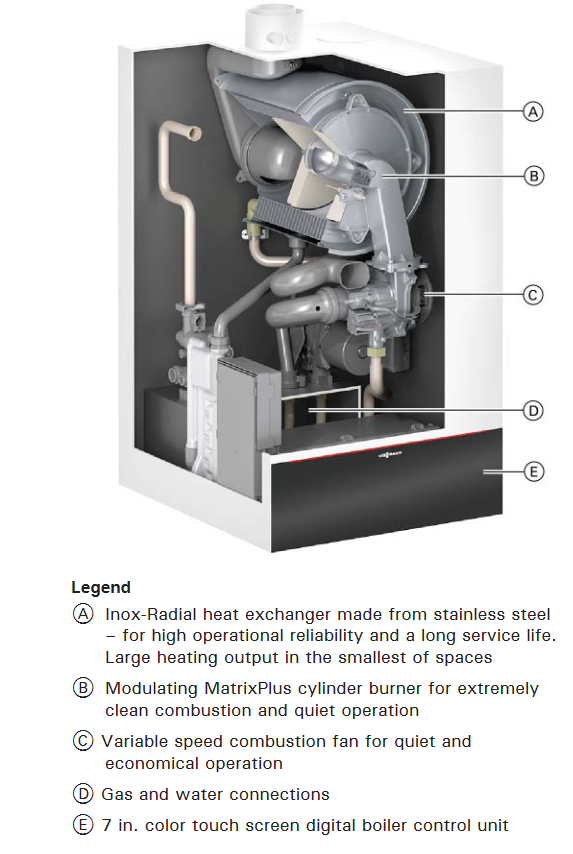

  • Features an Inox-Radial stainless steel heat exchanger and a MatriX-Plus modulating cylinder burner.
  • Includes a 7-inch color touchscreen control display and an integral variable speed circulator.

Product Highlights

High-efficiency, wall-mounted gas boiler with stainless steel components and advanced controls for hydronic heating.

Product Information

Standard Information

  • Brand: VIESSMANN
  • Manufacturer Part Number: 7722779

Technical Specifications

  • Brand: VIESSMANN
  • MPN: 7722779
  • Model: Vitodens 200
  • Inventory SKU: B2HE-120
  • Type: Wall-Mounted Gas-Fired Condensing (Heat-Only) Hydronic Boiler
  • BTU Input: 120000 BTU
  • BTU Output: 113000 BTU
  • AFUE: 95%
  • Fuel Type: Natural Gas/Liquid Propane
  • Voltage: 120V
  • Amperage Rating: 12 A
  • Burner Power: 88 kW
  • Heat Exchanger Material: Stainless Steel Inox-Radial
  • Burner Type: MatriX-Plus Modulating Cylinder
  • Installation Type: Wall Mount
  • Vent Type: Direct Vent
  • Vent Material: PVC/CPVC
  • Vent Size: 3 inches
  • Gas Connection: 3/4 inch NPTF
  • Heating Supply/Return Connection: 3/4 inch NPTM
  • Condensate Drain Connection: 3/4 inch
  • Water Content: 1.02 gallons
  • Control: 7 inch Touchscreen with Outdoor Sensor
  • Circulator: Integral Variable-Speed Boiler Pump
  • Sound Rating: 59 dB (max) / 34 dB (min)
  • Max Condensate: 1.2 USG/h
  • Altitude Operation: Up to 10,000 ft
  • Certifications: CSA B51 & ASME Section IV; low-NOx (<20 ppm); compliant with SCAQMD 1146.2/BAAQMD Reg. 9-6/SJVAPCD 4308
  • Application: Residential/Commercial
