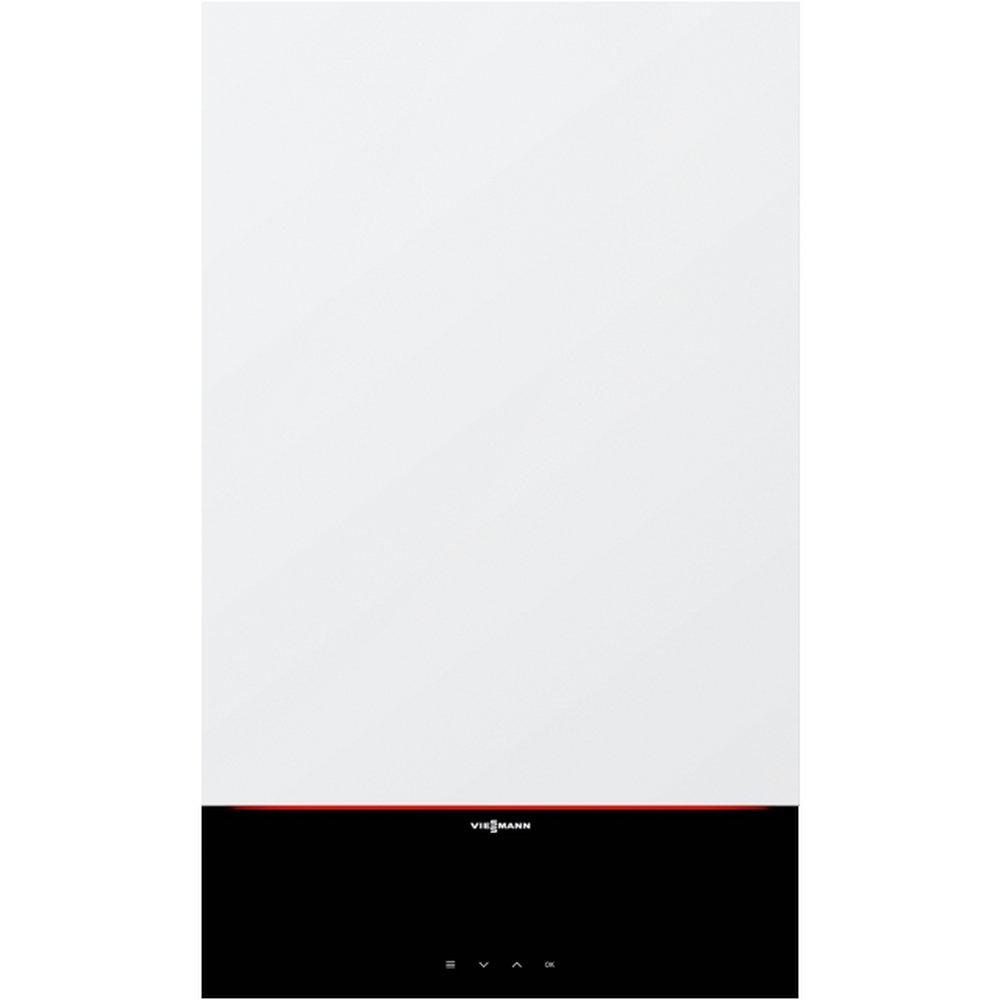

Viessmann 7722772 Gas Boiler Heat Only 80K 95%

Product Description

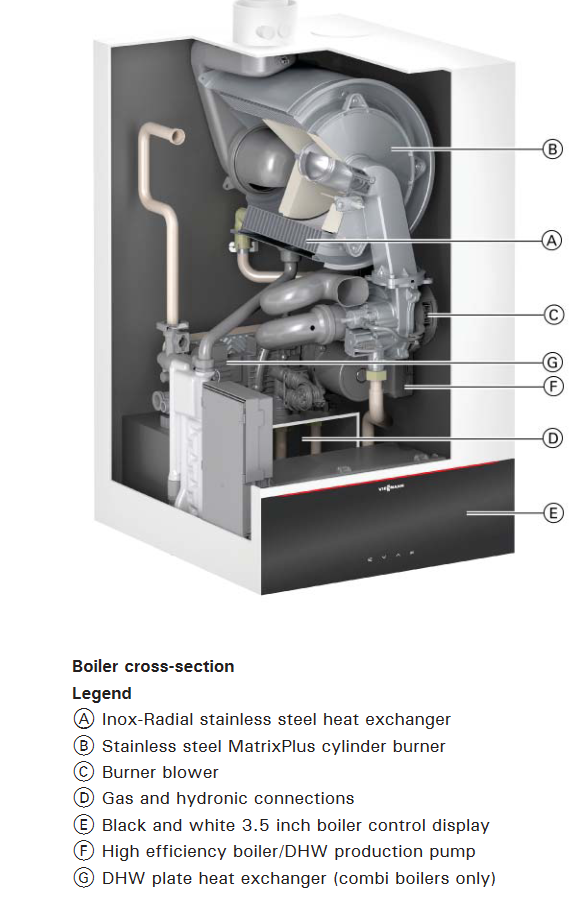

The Viessmann 7722772 Gas Boiler Heat Only 80K 95% is designed for residential use. It features a stainless steel heat exchanger and can be converted to LP with the included LP kit. All pipe and electrical connections are located on the bottom, with serviceable components accessible from the front.

• Mobile ViCare app and Wi-Fi connectivity included
• 95% AFUE rating on all models
• Zero clearance to combustibles

Product Highlights

This gas boiler offers 80,000 BTU heating capacity and 95% AFUE rating, ensuring efficient and reliable performance for residential heating needs.

Product Information

Standard Information

• Brand: VIESSMANN
• Manufacturer Part Number: 7722772

Technical Specifications

• Brand Name: Viessmann
• Type: Wall Hung Combi Boiler
• BTU Range Input: 85000
• BTU Range Output: 70000
• Voltage: 120V
• AFUE: 95%
• Fuel Type: Natural Gas, Propane
• Heat Exchanger Material: Stainless Steel
• BTU Input: 85000
• Annual Fuel Usage Efficiency (AFUE): 95.0
• Domestic Hot Water: No
• Vent Type: Direct Vent
• Building Type: Residential
• Length (inches): 19.75
• Width (inches): 17.75
• Height of Boiler (inches): 33.75
• Vent Material: PVC/CPVC
• Supply: Male Iron Pipe 3/4
• Return: Male Iron Pipe 3/4
• Gas Connection (inches): 3/4
• Vent Size (inches): 3
• AMP: 12
• ANSI: ANSI 372, ANSI Z21.13
• ASME: ASME B51, ASME H
• Application: Commercial, Residential
• Boiler Type: Gas Boiler
• CSA Certified: CSA B51
• Condensing: Yes
• Depth: 19-3/4
• Emission: Low NOx
• Energy Star Compliant: Yes
• Flow Rate: 4.8 gpm
• Input (MBH): 85 MBH
• Installation Type: Wall Mount
• Material: Stainless Steel
• NSF: NSF 372
• NSF Certified: Yes
• Phase: Single Phase
• Return Pipe Connection: 3/4
• Supply Pipe Connection Size: 3/4
