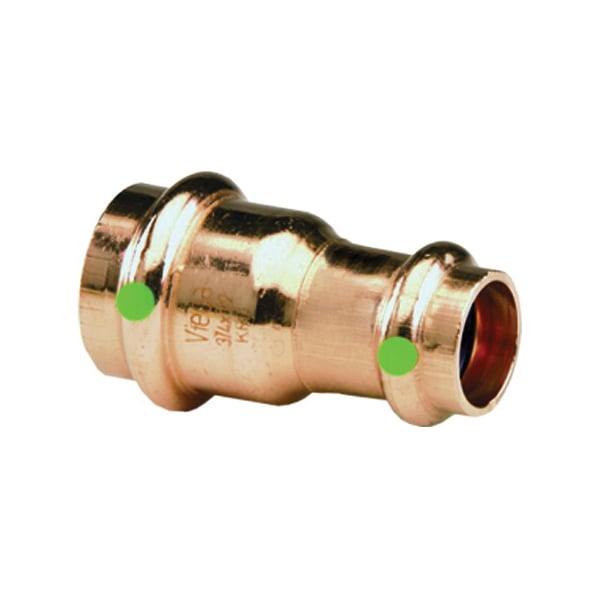

Viega VIEGRED2112 Propress Pipe Reducer 2 X 1-1/2 Inches Press End Copper Reducing Coupling

Product Description

The Viega VIEGRED2112 is a ProPress copper pipe reducer designed for professional plumbing and mechanical systems. This reducing coupling connects a 2-inch pipe to a 1-1/2-inch pipe using a press end style connection. It eliminates the need for open flames, soldering, or flux. That makes it a fast and reliable choice for plumbers working in occupied buildings, tight spaces, or areas where fire hazards are a concern. The press connection system uses a specially designed fitting that is crimped onto the pipe with a press tool. The result is a permanent, leak-free joint that meets the demands of commercial and residential plumbing installations. The VIEGRED2112 is made from copper, which is a trusted material in water supply and distribution systems. Copper resists corrosion, handles high temperatures, and is compatible with a wide range of fluids used in plumbing and hydronic heating systems. This reducer is rated for pressures up to 200 psi, making it suitable for most standard water supply and HVAC hydronic applications. The temperature range spans from 0 to 250 degrees Fahrenheit, so it performs reliably in both cold water lines and hot water heating systems. The overall length of the fitting is 3-3/4 inches. Plumbers, pipefitters, and mechanical contractors use reducing couplings like this one to transition between pipe sizes within a single run. This is common when a main supply line steps down to feed a branch line or fixture connection. The press end style on both ends of this fitting allows for tool-based installation without soldering, making the job faster and cleaner on the job site.

• Press end style connection on both ends eliminates the need for soldering or open flame
• Rated to 200 psi with a temperature range of 0 to 250 degrees Fahrenheit for versatile use in water supply and hydronic systems
• Copper construction provides corrosion resistance and long-term durability in plumbing and mechanical applications

Product Highlights

The Viega VIEGRED2112 ProPress copper reducing coupling offers a fast, flame-free press connection for transitioning from 2-inch to 1-1/2-inch pipe. It is built for professional plumbing installations that demand reliable, pressure-rated performance.

Product Information

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: VIEGRED2112

Technical Specifications

• Product Type: Pipe Reducer
• Series: ProPress
• Fitting Type: Reducing Coupling
• Connection Style: Press End
• Inlet Size: 2 inches
• Outlet Size: 1-1/2 inches
• Material: Copper
• Maximum Pressure Rating: 200 psi
• Temperature Range: 0 to 250 degrees Fahrenheit
• Overall Length: 3-3/4 inches
