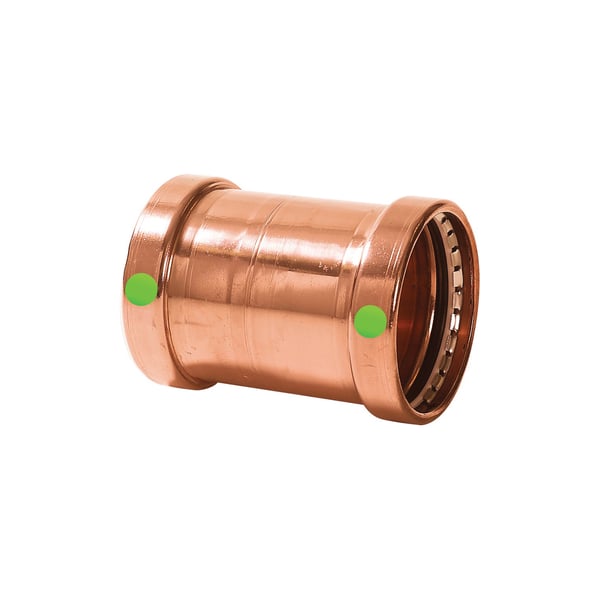

Viega VIEGCOUPLS212 Propress Xl-c Pipe Coupling 2-1/2 Inches Press End Copper

Product Description

The Viega VIEGCOUPLS212 is a ProPress XL-C press-end pipe coupling designed for 2-1/2 inch nominal copper pipe systems. This fitting is built for professional plumbers and pipefitters who need a fast, reliable, and flame-free connection method on commercial and residential plumbing projects. The ProPress system from Viega eliminates the need for soldering, making it one of the most efficient connection methods available for copper pipe installations. Technicians can complete connections in seconds using a standard press tool, reducing labor time and improving jobsite safety by removing open-flame requirements. The coupling joins two sections of copper pipe in a straight run, maintaining consistent flow and pressure throughout the system. It is rated for pressures up to 200 psi, making it suitable for a wide range of water supply and hydronic heating applications. The operating temperature range spans from 0 to 250 degrees Fahrenheit, covering both cold water supply lines and hot water distribution systems. The 2-1/2 inch size is commonly used in larger commercial plumbing systems, mechanical rooms, and main distribution lines where higher flow capacity is required. The press-end style connection creates a secure, leak-free joint that meets industry standards for copper press fittings. This coupling is constructed from copper, offering excellent corrosion resistance and long service life in both potable water and non-potable water systems. The ProPress XL-C series is specifically engineered for larger diameter applications, providing the same proven performance as the standard ProPress line. Plumbers, mechanical contractors, and commercial pipefitters rely on press fittings like this one to speed up installations without sacrificing quality or code compliance. This fitting is a direct replacement option for other 2-1/2 inch press couplings used in copper pipe systems.

• 2-1/2 inch nominal press-end copper pipe coupling for flame-free installation
• Rated to 200 psi and a temperature range of 0 to 250 degrees Fahrenheit
• ProPress XL-C design engineered for larger diameter copper pipe applications

Product Highlights

The Viega VIEGCOUPLS212 ProPress XL-C coupling delivers a fast, press-to-connect copper pipe joint rated for 200 psi and temperatures up to 250 degrees Fahrenheit, making it a dependable choice for commercial plumbing and hydronic systems requiring 2-1/2 inch fittings.

Product Information

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: VIEGCOUPLS212

Technical Specifications

• Product Series: ProPress XL-C
• Fitting Type: Coupling
• Connection Style: Press End
• Nominal Size: 2-1/2 inches
• Material: Copper
• Maximum Pressure Rating: 200 psi
• Temperature Range: 0 to 250 degrees Fahrenheit
