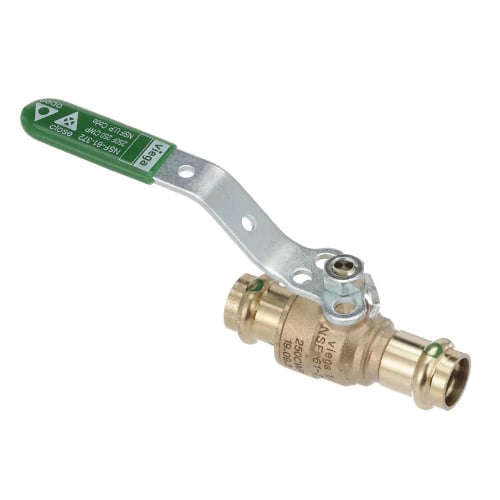

Viega VIEGBV2 Propress 2971.1ZL 2-piece Full Port Ball Valve 2 Inches Press End C87700 Bronze Epdm

Product Description

The Viega VIEGBV2 is a ProPress series 2971.1ZL 2-piece full port ball valve designed for professional plumbing and mechanical systems. It features a 2 inch nominal size with a press end connection style, making it compatible with Viega ProPress fittings for fast, flame-free installation. This valve is built for water distribution systems where reliable shutoff and flow control are required. The cold working pressure rating is 250 psi, and the operating temperature range runs from 0 to 250 degrees Fahrenheit. These ratings make it suitable for a wide range of commercial and residential hydronic and domestic water applications. The body is constructed from C87700 bronze, a high-strength copper alloy known for its corrosion resistance and durability in wet environments. The ball is made from 316 stainless steel, which resists corrosion and withstands repeated cycling without degrading. Trim material is C69300 brass with PTFE seats, providing smooth quarter-turn operation and a tight seal across the full service life of the valve. Softgoods are EPDM, which holds up well in water systems and maintains a reliable seal across the rated temperature range. The full port design allows unrestricted flow through the valve body, minimizing pressure drop and keeping system efficiency high. The locking handle actuator adds a layer of operational security, allowing the valve to be locked in the open or closed position to prevent accidental or unauthorized changes. The top to inlet center dimension measures 3.32 inches, which supports accurate planning in tight mechanical spaces. This valve is commonly installed by licensed plumbers, mechanical contractors, and pipefitters working on commercial water systems, fire protection support lines, and hydronic heating and cooling distribution. Press end connections eliminate the need for soldering or threading, reducing labor time and open-flame risk on the job site. The Viega VIEGBV2 is an imported product built to meet the demands of trade professionals who require dependable performance and code-compliant materials.

• 2 inch nominal press end connection for flame-free, tool-pressed installation compatible with Viega ProPress systems
• C87700 bronze body with 316 stainless steel ball and C69300 brass and PTFE trim for long-term corrosion resistance
• Full port design with locking handle actuator rated to 250 psi CWP and 0 to 250 degrees Fahrenheit for water service

Product Highlights

The Viega VIEGBV2 ProPress 2971.1ZL ball valve delivers reliable shutoff performance in a 2 inch press end configuration, combining a bronze body, stainless steel ball, and EPDM softgoods for durable water system service up to 250 psi.

Product Information

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: VIEGBV2

Technical Specifications

• Series: 2971.1ZL
• Configuration: 2-Piece
• Nominal Size: 2 inches
• Connection Style: Press End
• Port Type: Full Port
• Body Material: C87700 Bronze
• Ball Material: 316 Stainless Steel
• Trim Material: C69300 Brass with PTFE
• Softgoods Material: EPDM
• Cold Working Pressure: 250 psi
• Operating Temperature Range: 0 to 250 degrees Fahrenheit
• Media: Water
• Actuator Type: Locking Handle
• Top to Inlet Center Dimension: 3.32 inches
• Origin: Import
