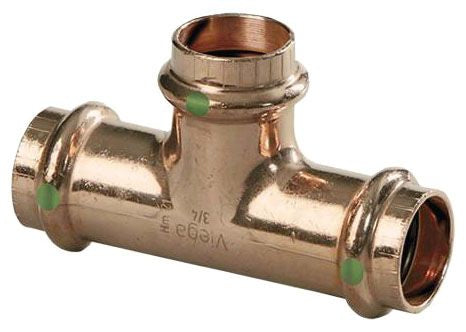

Viega 77477 ProPress Copper Tee 2-Inch PXPXP - EPDM Sealing - 200 PSI

Product Description

The Viega 77477 ProPress Copper Tee for professional plumbing offers a reliable and efficient solution for pipe installations, featuring a 2-inch press x press x press configuration. Manufactured by Viega, a leader in press pipe fitting technology, this tee is constructed with zero lead copper and includes an EPDM sealing element for enhanced durability and reliability.

• Quick and secure ProPress connections without the need for soldering.
• Compatible with type K, L, and M hard copper as well as soft copper tubing.
• Compliant with a wide range of standards including ASME B16.51 and NSF 61.

Product Highlights

The Viega 77477 features the patented Smart Connect technology, which allows installers to easily identify any unpressed connections during the pressure testing phase. Its robust construction supports a temperature range from 0 to 250 degrees Fahrenheit and pressure up to 200 PSI, making it suitable for applications such as chilled water systems, hydronic heating, and fire sprinkler systems.

Product Information

Standard Information

• Brand: Viega
• Model: 77477
• Sealing Element: EPDM

Technical Specifications

• Material: Copper
• Pressure Rating: 200 PSI
• Temperature Range: 0 to 250 degrees Fahrenheit
• Connection Type: ProPress x ProPress x ProPress
• Compliance: ASME B16.51, CSA MSE-13, FM Class 1920, IAPMO PS117
