Product Description

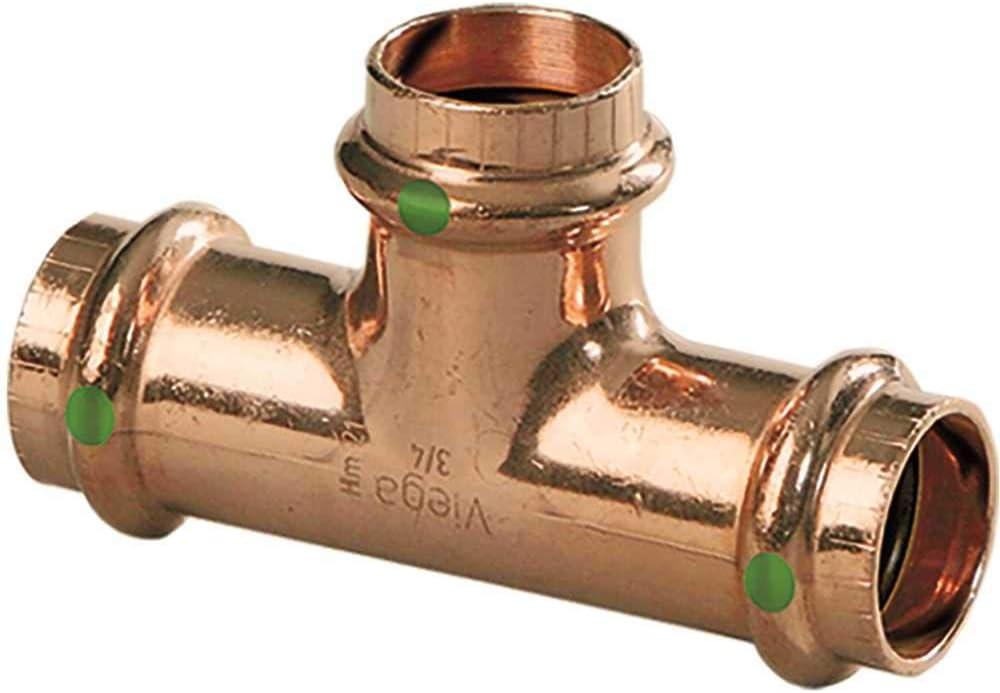

The Viega 77427 ProPress Copper Reducing Tee is designed for secure, reliable connections in plumbing systems utilizing press technology. It effectively joins a 1 inch, a 3/4 inch and another 1 inch copper pipe in a T-formation, enhancing system integrity and durability.
- Designed for easy and quick installation without the need for soldering.
- Equipped with EPDM sealing elements for optimal performance.
- Compatible with type K, L, and M hard copper tubing as well as soft copper tubing.
Product Highlights
This reducing tee offers a robust solution for both commercial and residential plumbing configurations, supporting up to 200 PSI and temperatures ranging from 0 to 250 degrees Fahrenheit. With the patented Viega Smart Connect feature, it ensures that unpressed connections are easily identified, reducing potential leak points.
Product Information
Standard Information
-
Material: Copper
-
Connection Type: Press x Press x Press
Technical Specifications
-
Pressure Rating: 200 PSI
-
Temperature Range: 0 to 250 Degrees Fahrenheit
-
Standards: ASTM B75, ASTM B88, ABS, CSA MSE-13, FM Class 1920
-

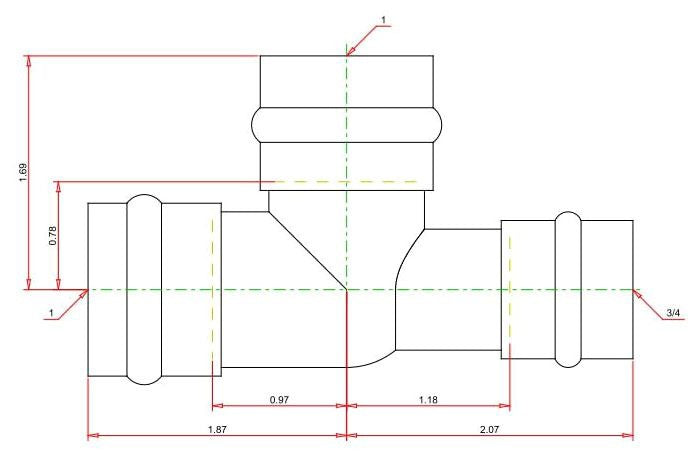

Size: 1 inch x 3/4 inch x 1 inch
