Product Description

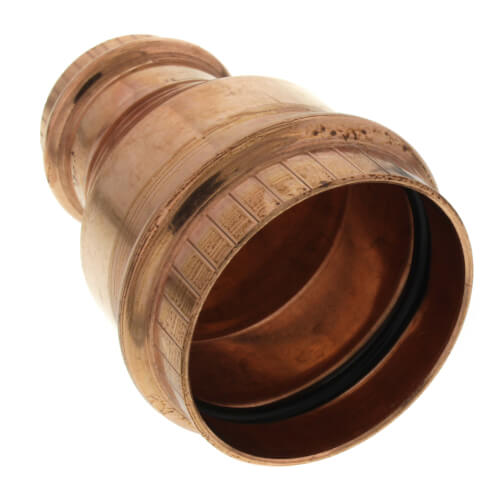

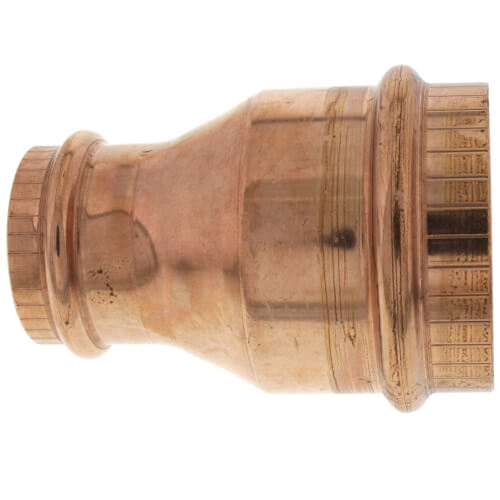

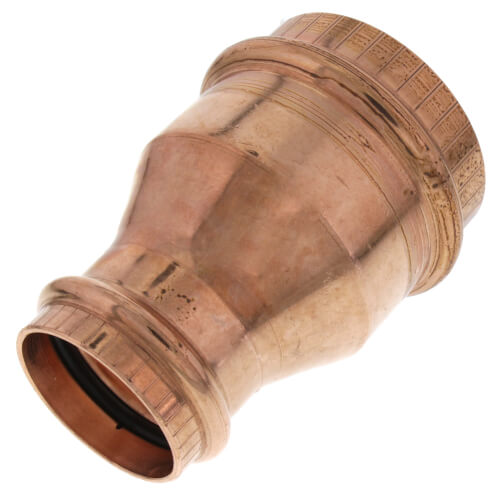

The Viega ProPress 22328 Copper Reducer features a robust construction for 2-Inch to 1-1/4-Inch Press x Press connections. This reducer is suitable for a range of applications including potable water systems and HVAC installations.
- Designed for quick installation without the need for soldering, cutting down on labor time.
- Made from high-quality copper ensuring durability and compliance with ASTM B88 standards.
- Incorporates the Viega Smart Connect feature for a guaranteed secure seal.
Product Highlights
The Viega 22328 reducer is engineered to provide a tight, leak-proof connection while withstanding pressures up to 200 PSI. It is compatible with type K, L, and M hard copper tubing.
Product Information
Standard Information
-
Brand: Viega
-
MPN: 22328
-
Material: Copper
Technical Specifications
-
Size A: 2 inch
-
Size B: 1-1/4 inch
-
End Connection: ProPress x ProPress
-
Pressure Rating: 200 PSI
-
Temperature Range: 0 to 250 Degrees Fahrenheit
-
Compliance: ABS, CSA MSE-13, FM Class 1920, IAPMO PS117, ICC-ES PMG-1037, NSF 372, NSF 61
