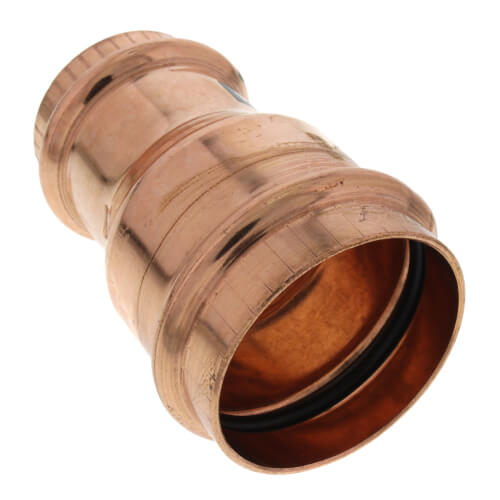

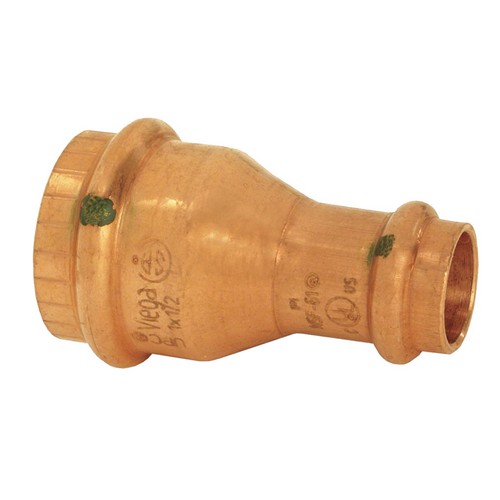

Viega 78167 ProPress Copper Reducer 2 Inch x 1-1/2 Inch

Product Description

The Viega ProPress 78167 Copper Reducer simplifies the connection process between 2 inch and 1-1/2 inch copper pipes. It's perfect for projects that require reliable water flow, including potable water systems and fire sprinkler systems.

• Secure connection in less than seven seconds without flame, solder, or flux.
• Built from high-quality copper compliant with ASTM B88 standards.
• Designed for systems with a maximum operating temperature of 250 degrees Fahrenheit and a pressure capacity of 200 PSI.

Product Highlights

Utilizing the Viega Smart Connect feature, this reducer minimizes downtime and allows for immediate testing of connections. It's suitable for both wet and dry connections, enhancing flexibility during installations.

Product Information

Standard Information

• Application: Used in potable water, fire sprinkler, and HVAC systems.
• Pressure Rating: 200 PSI, ensuring durability under high-pressure conditions.
• Temperature Tolerance: Up to 250 degrees Fahrenheit, allowing usage in various temperature environments.

Technical Specifications

• Material: Copper
• Connection Type: ProPress x ProPress
• Size: 2 inch x 1-1/2 inch
• Standards: ASTM B88, CSA MSE-13, FM Class 1920, IAPMO PS117, ICC-LS 1002, UL 213
