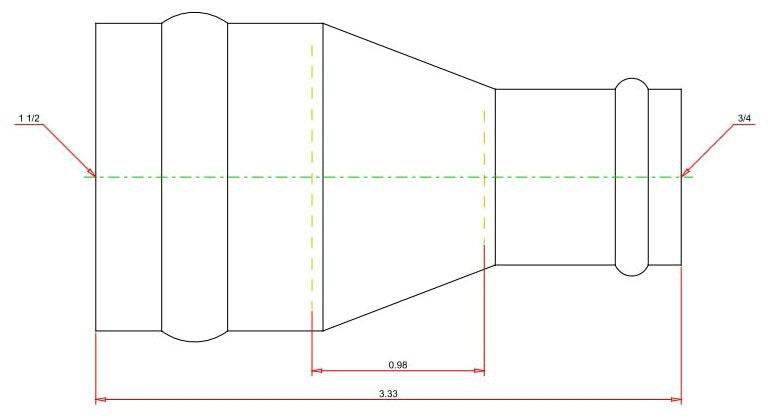

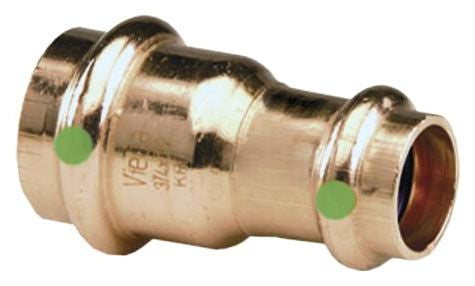

Viega 18473 ProPress Copper Reducer 1-1/2 Inch by 3/4 Inch P x P

Product Description

The Viega 18473 ProPress Copper Reducer efficiently connects 1-1/2 inch and 3/4 inch pipes, facilitating a smooth and secure transition in copper piping systems. This reducer is designed for applications ranging from potable water systems to fire sprinkler and HVAC systems.

• Secure, flame-free connections reduce installation time.
• Compatible with ASTM B88 hard and soft copper tubing.
• Maximum operating pressure of 200 psi and temperature up to 250 degrees Fahrenheit.

Product Highlights

The Viega ProPress system boats unique features such as the Smart Connect technology which significantly eases the installation process by identifying unpressed connections. This feature is crucial for maintaining system integrity during setup.

Technical Specifications

• Material: Copper
• Connection Type: ProPress x ProPress
• Pressure Rating: 200 PSI
• Temperature Rating: 0 to 250 Degrees Fahreneheit
• Standards: ASTM B88, NSF 61, IAPMO PS117
• Included Components: Reducer and installation instructions
