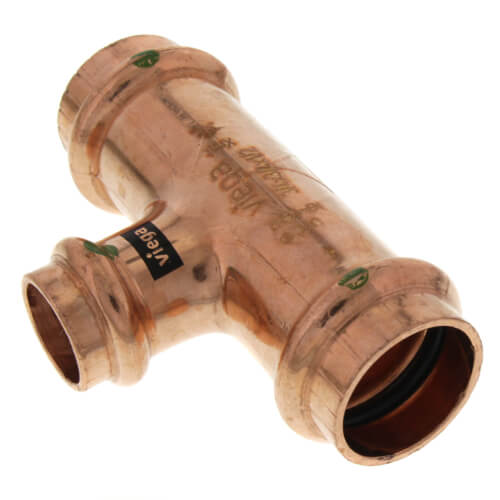

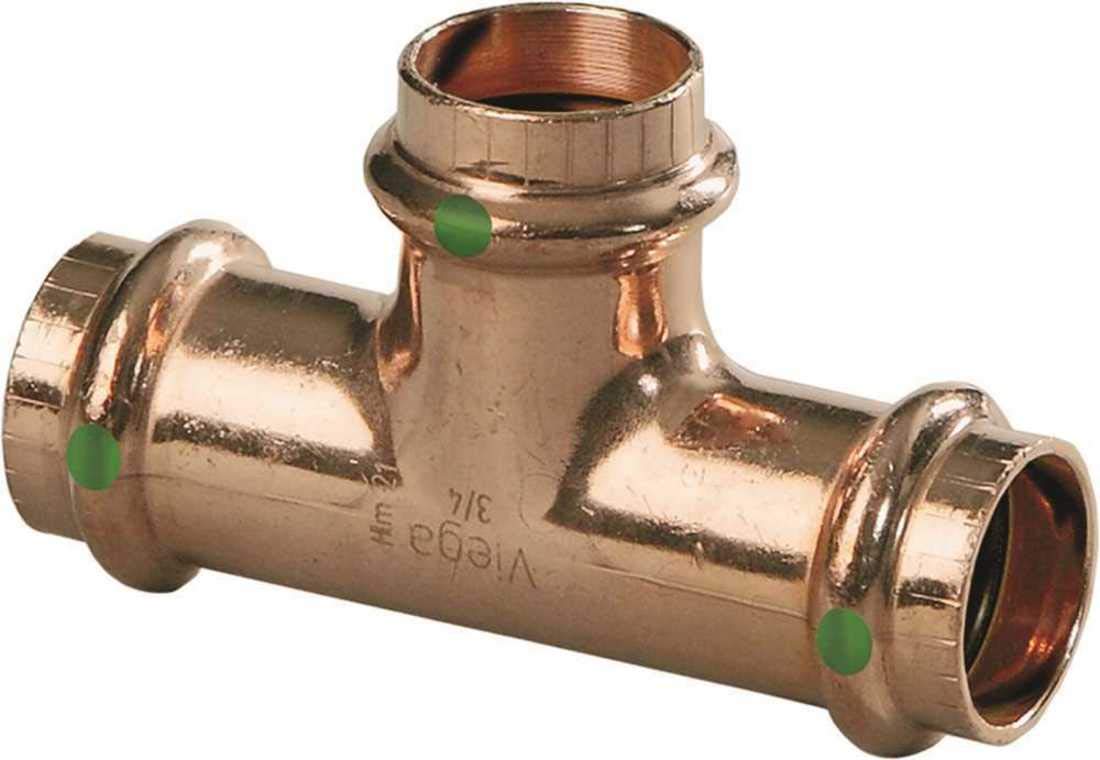

Viega 77402 ProPress 3/4 x 3/4 x 1/2 Copper Tee Reducing Tee

Product Description

The Viega 77402 ProPress 3/4 x 3/4 x 1/2 Copper Tee is a reliable and efficient solution for various plumbing applications. Designed with ProPress technology, this reducing tee ensures a secure and quick installation.

• Use with chilled water and compressed air systems
• Made of high-quality copper material
• Compatible with ASTM B88 tubing

Product Highlights

This ProPress tee is ideal for applications including hydronic heating, cooling water, fire sprinkler systems, and potable water. It features an EPDM sealing element, ensuring leak-free connections. The patented Viega Smart Connect allows installers to join wet connections in less than seven seconds, minimizing system downtime.

Product Information

Standard Information

• Brand: Viega
• MPN: 77402

Technical Specifications

• Material: Copper
• Pressure Rating: 200 PSI
• Temperature Rating: 0 to 250 Deg F

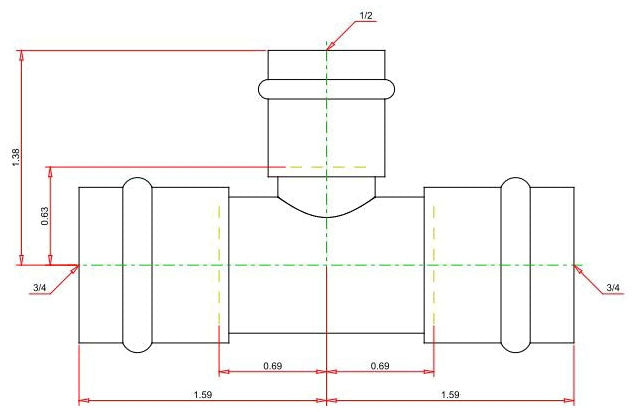

• Nominal Size: 3/4 inch x 3/4 inch x 1/2 inch
• End Connection: ProPress x ProPress x ProPress
• Applicable Standard: ABS, CSA MSE-13, FM Class 1920, IAPMO PS117, ICC LC 1002, UL 213, PHCC, NFPA 13/13D/13R, ASME B16.51
• Applications: Chilled Water, Compressed Air, Hydronic Heating, Cooling Water, Low Pressure Steam, Fire Sprinkler System, Potable Water
• Sealing Element: EPDM
