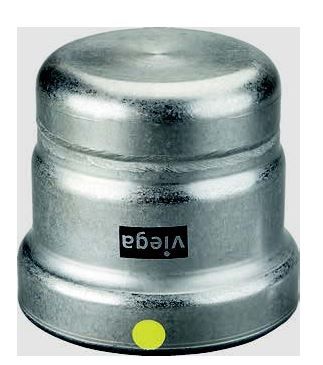

Viega 28865 MegaPressG Cap 3 inch

Product Description

The Viega 28865 MegaPressG cap is designed to ensure quick and reliable pipe connections in various industrial applications. Made by Viega, this cap features Smart Connect technology and must be installed with MegaPress XL rings and PressBooster/Z3 actuator.

• Press connection for easy installation
• Durable zinc-nickel coated carbon steel construction
• Compatible with schedule 10 to schedule 40 carbon steel pipe

Product Highlights

The Viega MegaPressG 28865 cap saves time and labor, making it ideal for gas pipe applications. Installation is quick, taking just 16 seconds or less.

Product Information

Standard Information

• Brand: Viega
• Model: 6656XL

Technical Specifications

• Connection Type: Press
• Material: Zinc-nickel coated carbon steel
• Size: 3 inch
• Temperature Range: -40°F to 180°F
• Max Operating Pressure: 200 psi
• Sealing Elements: HNBR
• Standards/Approvals: CAN/CSA-B149.1, IAPMO/UPC LC4, ANSI LC4/CSA 6.32, ICC-ES PMG1036, ABS, Lloyd’s Register, NFPA 54/Z223, NFPA 58
• Applications: Natural Gas, Lubricants/oils, Industrial Gases, Compressed Air, Fuel oil, Vacuum
