Viega 26645 MegaPress XL Male Adapter Press x Male 3 inch

Product Description

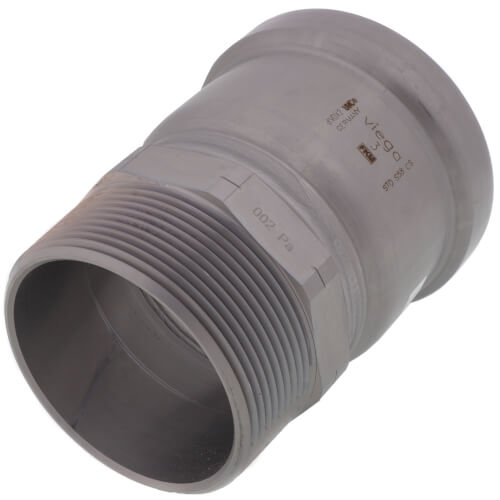

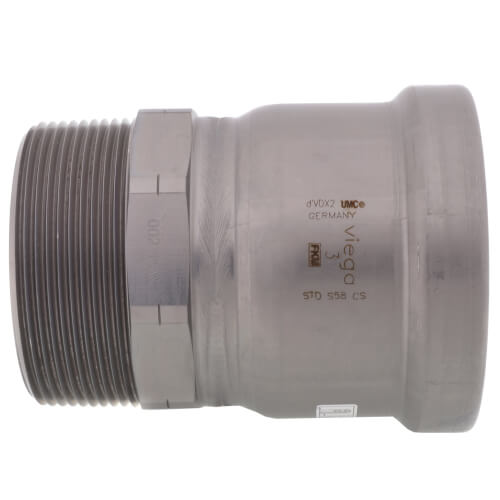

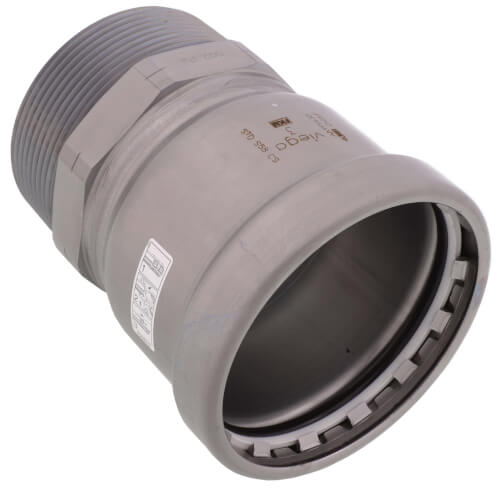

The Viega 26645 MegaPress XL Male Adapter is made from carbon steel and features a Press x Male connection. It is suitable for use with Schedule 5 to 40 carbon steel pipes.

• For use with Schedule 5 to 40 carbon steel pipe
• Press connection, male pipe thread
• Carbon steel construction

Product Highlights

This adapter includes FKM sealing elements and is installed with MegaPress XL rings and the PressBooster. It is designed for chilled water, hydronic heating, compressed air, and fire sprinkler applications.

Product Information

Standard Information

• Brand: Viega
• MPN: 26645

Technical Specifications

• UPC: 691514266459
• Finish: Zinc Nickel
• Length: 5.16 inches
• Series: MegaPress XL
• Weight: 2.314 lb.
• Material: Carbon Steel
• Application: Chilled Water, Hydronic Heating, Compressed Air, Fire Sprinkler
• For Use With: Schedule 5 to 40 Carbon Steel Pipes
• Selling Size: 3 inches
• Connection Size: 3 inches
• Connection Type: Press x MPT
• Specifications Met: FM Class 1920, CRN OA14541.6, ICC LC 1002, IAPMO PS117, ASME B31, NFPA 13, 13D and 13R, 31, 54
• Maximum Pressure Rating: 200 PSI
• Maximum Temperature Rating: +284 deg F
• Minimum Temperature Rating: +14 deg F
• Resistance Properties/Features: Corrosion-Resistant
