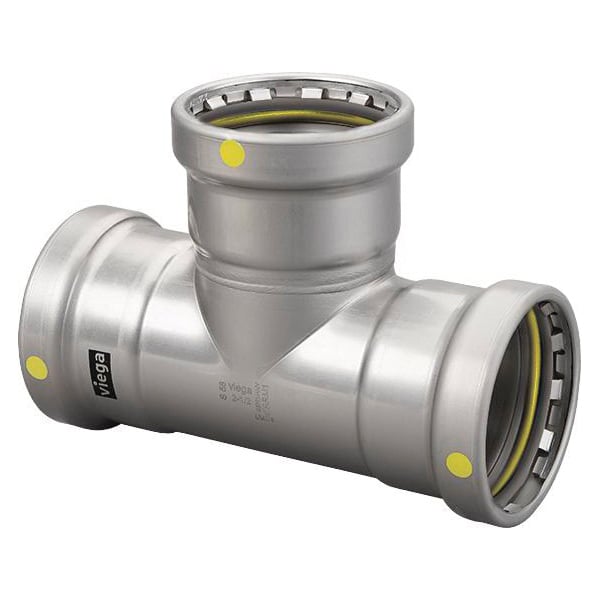

Viega MEGAPGT3 Megapress Model 6618XL Carbon Steel Press Tee 3 Inches

Product Description

The Viega MEGAPGT3 is a MegaPress Model 6618XL carbon steel press tee designed for professional piping systems in commercial and industrial applications. This fitting connects three pipe runs in a tee configuration using Viega's press connection technology, eliminating the need for threading, welding, or soldering on the job site. The 3-inch nominal size makes it well-suited for larger diameter piping systems where reliable, leak-tight joints are critical. HVAC technicians, plumbers, pipefitters, and mechanical contractors rely on press fittings like this one to speed up installation time and reduce labor costs without sacrificing connection integrity. The press end style allows the fitting to be secured using a compatible press tool, creating a permanent, pressure-rated joint in seconds. This tee is rated for use with fuel gas at up to 125 psi and for other fluid applications at up to 200 psi, covering a broad range of service conditions including hydronic heating, chilled water, gas distribution, and general piping systems. The operating temperature range spans from -40 degrees Fahrenheit to 180 degrees Fahrenheit, making it suitable for both cold and moderately high-temperature systems. The carbon steel construction provides the strength needed for Schedule 40 and standard wall pipe. A nickel plated and zinc plated finish adds a layer of corrosion resistance to the exterior surfaces. Whether used in new construction or retrofit work, this Viega MegaPress tee delivers consistent, code-compliant performance on commercial mechanical jobs where speed and reliability both matter.

• 3-inch nominal press tee for carbon steel piping systems
• Rated 125 psi for fuel gas and 200 psi for other applications including hydronic and water service
• Compatible with Schedule 40 and standard wall pipe; operating range -40 to 180 degrees Fahrenheit

Product Highlights

The Viega MEGAPGT3 MegaPress Model 6618XL tee delivers fast, tool-pressed connections in a heavy-duty carbon steel body rated for fuel gas and a wide range of fluid piping applications at 3-inch nominal size.

Product Information

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: MEGAPGT3

Technical Specifications

• Series: Model 6618XL
• Fitting Type: Tee
• Nominal Size: 3 inches
• Connection Style: Press End
• Material: Carbon Steel
• Finish: Nickel Plated and Zinc Plated
• Pipe Schedule Compatibility: SCH 40 and Standard Wall
• Pressure Rating (Fuel Gas): 125 psi
• Pressure Rating (Other Applications): 200 psi
• Temperature Range: -40 to 180 degrees Fahrenheit
• Origin: Import
