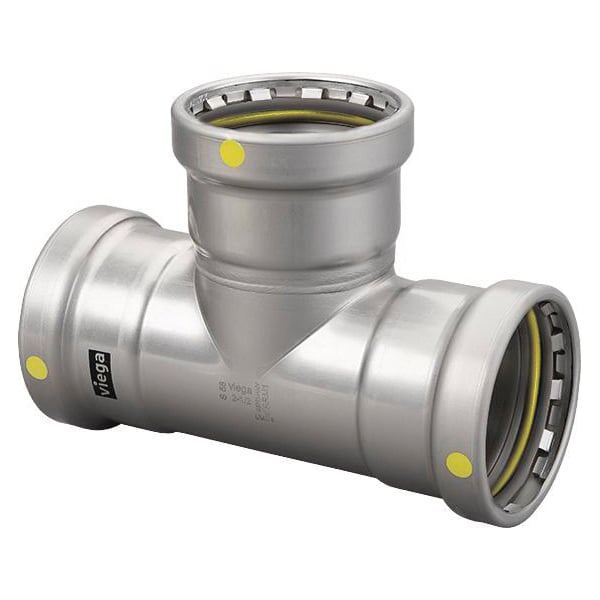

Viega MEGAPGT212 Megapress Model 6618XL Tee 2-1/2 Inches Press End Carbon Steel

Product Description

The Viega MEGAPGT212 is a MegaPress Model 6618XL press-fit tee fitting designed for professional plumbing and mechanical piping systems. This 2-1/2 inch nominal carbon steel tee uses a press end connection style, making it a fast and reliable choice for commercial and industrial pipe installations. Plumbers, pipefitters, and mechanical contractors rely on press-fit fittings like this one to eliminate open flame soldering and reduce installation time on the job site. The press connection method uses a crimping tool to create a secure, leak-free joint without heat, solvents, or threading. This makes it well suited for retrofit work, tight spaces, and applications where fire safety is a concern. The Viega MegaPress system is widely recognized in the trade for its compatibility with Schedule 40 and standard wall carbon steel pipe. This tee fitting carries a working pressure rating of 125 psi for fuel gas applications and 200 psi for all other applications, including water, compressed air, and hydronic heating systems. The temperature range spans from -40 degrees Fahrenheit to 180 degrees Fahrenheit, covering most commercial HVAC, plumbing, and mechanical service environments. The fitting features a nickel plated and zinc plated finish that provides corrosion resistance and extends service life in demanding conditions. The tee configuration allows a branch connection off the main run of pipe, making it essential for splitting or distributing flow in a piping network. This fitting is an import product built to meet the dimensional standards required for use in professional piping systems. Contractors working with 2-1/2 inch carbon steel pipe will find this tee a dependable component for new construction and service work alike.

• 2-1/2 inch nominal press-fit tee for carbon steel pipe, compatible with Schedule 40 and standard wall pipe
• Rated 125 psi for fuel gas and 200 psi for other applications, with a temperature range of -40 to 180 degrees Fahrenheit
• Nickel plated and zinc plated carbon steel construction for corrosion resistance and long service life

Product Highlights

The Viega MEGAPGT212 MegaPress Model 6618XL Tee delivers a fast, flame-free press connection for 2-1/2 inch carbon steel pipe in commercial plumbing, HVAC, and mechanical piping applications. Its dual pressure rating supports both fuel gas and general service use across a wide temperature range.

Product Information

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: MEGAPGT212

Technical Specifications

• Series: Model 6618XL
• Fitting Type: Tee
• Nominal Size: 2-1/2 inches
• Connection Style: Press End
• Pipe Compatibility: SCH 40 and Standard Wall
• Pressure Rating (Fuel Gas): 125 psi
• Pressure Rating (Other Applications): 200 psi
• Temperature Range: -40 to 180 degrees Fahrenheit
• Material: Carbon Steel
• Finish: Nickel Plated and Zinc Plated
• Origin: Import
