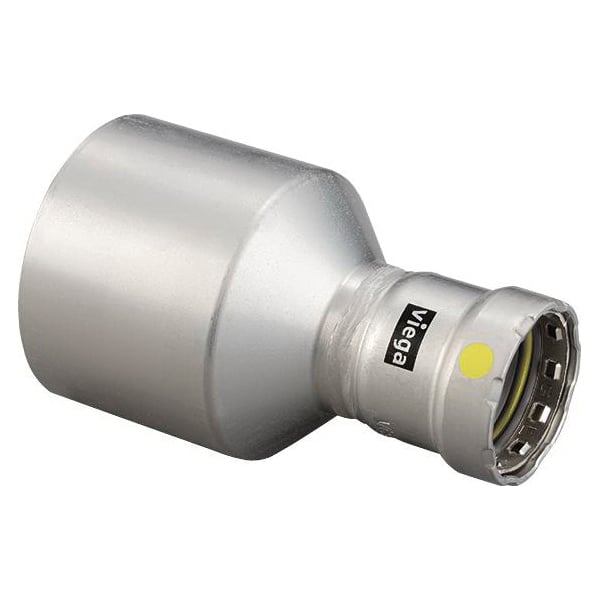

Viega MEGAPGREDFTGP3114 Megapress Model 6615.1XL Reducing Coupling 3 X 1-1/4 Inches Fitting X Press Carbon Steel

Product Description

The Viega MEGAPGREDFTGP3114 is a MegaPress Model 6615.1XL Reducing Coupling designed for professional piping installations in commercial and industrial settings. This fitting connects pipes of two different diameters, stepping down from a 3 inch nominal pipe to a 1-1/4 inch nominal pipe. It uses a Fitting x Press end style, which allows for fast, flameless installation without the need for soldering, threading, or welding. HVAC technicians, plumbers, and pipefitters working on mechanical systems rely on press fittings like this one to reduce labor time and minimize jobsite risk. The press connection method creates a secure, leak-tested joint using a standard press tool, making it a preferred choice for both new construction and retrofit projects. The fitting is manufactured from carbon steel with a nickel plated and zinc plated finish, providing corrosion resistance and long service life in demanding environments. It is rated for SCH 40 and standard wall pipe. The pressure rating is 125 psi for fuel gas applications and 200 psi for all other applications, including water, compressed air, and hydronic heating systems. The operating temperature range spans from -40 degrees Fahrenheit to 180 degrees Fahrenheit, making it suitable for a wide range of mechanical and industrial piping systems. The overall length of this fitting is 5.98 inches. This reducing coupling is part of the Viega MegaPress system, which is widely used in commercial plumbing, HVAC, fire protection, and gas distribution. Its compatibility with Schedule 40 carbon steel pipe makes it a dependable component for pressure piping systems that demand reliable performance.

• Reduces from 3 inch to 1-1/4 inch nominal pipe with a Fitting x Press connection style
• Rated for 125 psi fuel gas and 200 psi for other applications across a -40 to 180 degree Fahrenheit temperature range
• Carbon steel construction with nickel plated and zinc plated finish for corrosion resistance and durability

Product Highlights

The Viega MEGAPGREDFTGP3114 MegaPress reducing coupling delivers fast, flameless press connections for Schedule 40 carbon steel pipe, rated for both fuel gas and general pressure applications in commercial and industrial systems.

Product Information

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: MEGAPGREDFTGP3114

Technical Specifications

• Series: Model 6615.1XL
• Fitting Type: Reducing Coupling
• Nominal Size: 3 x 1-1/4 inches
• End Style: Fitting x Press
• Pipe Schedule: SCH 40 / STD
• Pressure Rating (Fuel Gas): 125 psi
• Pressure Rating (Other Applications): 200 psi
• Temperature Range: -40 to 180 degrees Fahrenheit
• Material: Carbon Steel
• Finish: Nickel Plated / Zinc Plated
• Overall Length: 5.98 inches
• Origin: Import
