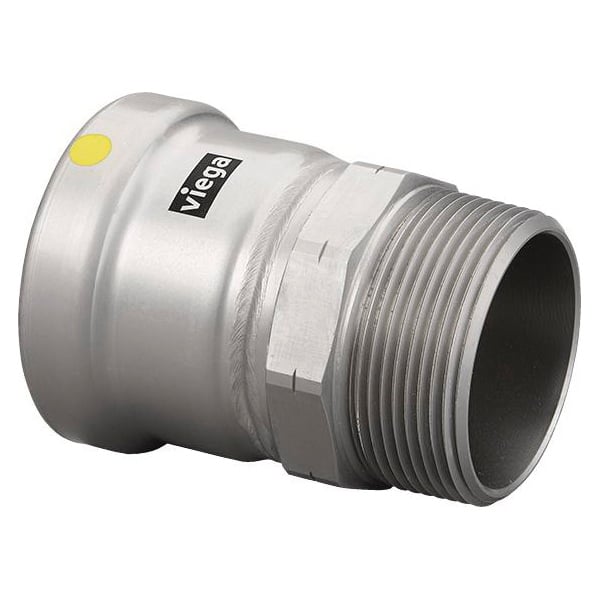

Viega MEGAPGADMIP3 Megapress Model 6611XL Press X Mnpt Adapter 3 Inch Carbon Steel

Product Description

The Viega MEGAPGADMIP3 is a MegaPress Series Model 6611XL Press x MNPT adapter designed for professional plumbing and mechanical piping systems. This 3 inch nominal fitting connects a press-style end to a male NPT threaded end, making it a reliable transition fitting for contractors and pipe fitters working on commercial and industrial installations. The adapter is manufactured from carbon steel with nickel plated and zinc plated finishes, providing corrosion resistance and long service life in demanding environments. It is rated for Schedule 40 and standard wall pipe applications, and carries a pressure rating of 125 psi for fuel gas service and 200 psi for all other applications. The operating temperature range spans from -40 degrees Fahrenheit to 180 degrees Fahrenheit, making it suitable for a wide range of hydronic, mechanical, and gas piping systems. The overall length of the fitting is 5.2 inches, and the nominal pipe size is 3 inches. Press fittings like this MegaPress adapter are widely used by licensed plumbers and mechanical contractors because they eliminate the need for open flame during installation. The press connection is made with a press tool, delivering a secure, leak-free joint quickly and efficiently. This reduces labor time on the job site and lowers the risk of fire hazards in occupied buildings or sensitive environments. The male NPT end threads directly into compatible female threaded fittings, valves, or equipment ports, giving installers a clean and versatile connection point. This adapter is an import product and is well suited for use in heating systems, chilled water systems, compressed air lines, and compatible fuel gas distribution systems where press-fit technology is specified or preferred.

• 3 inch nominal Press x MNPT adapter from the Viega MegaPress Model 6611XL series
• Rated 125 psi for fuel gas and 200 psi for other applications with a temperature range of -40 to 180 degrees Fahrenheit
• Carbon steel construction with nickel plated and zinc plated finish for durability and corrosion resistance

Product Highlights

The Viega MEGAPGADMIP3 MegaPress Model 6611XL adapter delivers a fast, flame-free press connection to male NPT threaded ends in 3 inch nominal pipe size. It is rated for both fuel gas and general mechanical piping service, making it a versatile choice for commercial and industrial piping contractors.

Product Information

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: MEGAPGADMIP3

Technical Specifications

• Series: MegaPress Model 6611XL
• Fitting Type: Adapter
• Nominal Pipe Size: 3 inches
• End Style: Press x MNPT
• Pipe Schedule: SCH 40 / Standard
• Pressure Rating (Fuel Gas): 125 psi
• Pressure Rating (Other Applications): 200 psi
• Temperature Range: -40 to 180 degrees Fahrenheit
• Material: Carbon Steel
• Finish: Nickel Plated and Zinc Plated
• Overall Length: 5.2 inches
• Origin: Import
