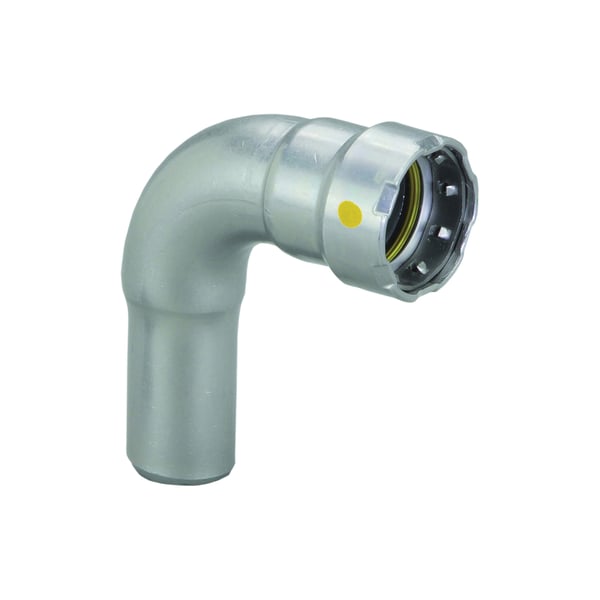

Viega MEGAPG90STL112 Megapress 90 Degree Street Elbow 1-1/2 Inches Fitting X Press Carbon Steel

Product Description

The Viega MEGAPG90STL112 is a MegaPress 90 degree street elbow designed for carbon steel piping systems. It fits 1-1/2 inch nominal pipe and uses a fitting x press connection style. This elbow is rated for temperatures from -40 to 180 degrees Fahrenheit, making it suitable for a wide range of mechanical and industrial piping applications. Plumbers, pipefitters, and mechanical contractors use this type of fitting to change flow direction by 90 degrees in tight spaces. The street configuration means one end is a male fitting connection and the other is a press-style end, which removes the need for threading or welding at the press connection point. Viega MegaPress fittings use a press-to-connect system that requires a compatible press tool. This speeds up installation significantly compared to traditional threaded or soldered fittings. Press fittings reduce labor time and minimize the risk of errors in the field. The carbon steel construction gives this fitting the strength needed for high-pressure and high-demand piping systems. Carbon steel is a common material choice in commercial HVAC, hydronic heating, fire suppression, and industrial piping. It handles mechanical stress and thermal cycling well. The 90 degree street elbow is a standard fitting shape used to route pipe around corners, obstacles, or structural elements in a building. This fitting is an imported product and meets the dimensional standards expected for 1-1/2 inch nominal carbon steel press fittings. Mechanical contractors working on large commercial or industrial jobs rely on MegaPress fittings for fast, reliable connections in steel piping systems without open flame or pipe threading equipment on site.

• 90 degree street elbow in 1-1/2 inch nominal size for carbon steel pipe systems
• Fitting x press connection eliminates threading and welding at the press end for faster installation
• Rated from -40 to 180 degrees Fahrenheit for use in a wide range of heating, cooling, and industrial applications

Product Highlights

The Viega MEGAPG90STL112 MegaPress street elbow delivers fast press-to-connect installation in carbon steel piping systems, reducing labor time and eliminating the need for open flame on the job site.

Product Information

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: MEGAPG90STL112

Technical Specifications

• Fitting Type: 90 Degree Street Elbow
• Nominal Size: 1-1/2 inches
• Connection Type: Fitting x Press
• Material: Carbon Steel
• Temperature Range: -40 to 180 degrees Fahrenheit
• Product Line: MegaPress
