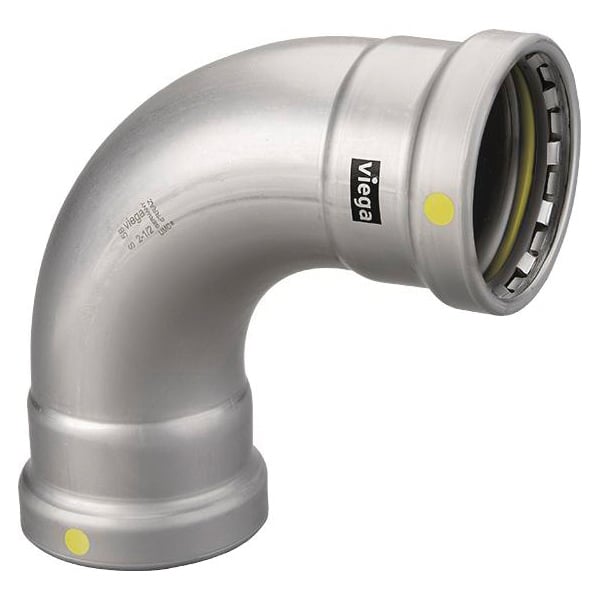

Viega MEGAPG90L3 Megapress 6616XL 90 Degree Press Elbow 3 Inch Carbon Steel

Product Description

The Viega MEGAPG90L3 is a MegaPress Series 6616XL 90 degree press elbow designed for 3 inch nominal pipe connections in commercial and industrial piping systems. This carbon steel fitting uses Viega's press connection technology, which eliminates the need for open flame, threading, or welding during installation. That makes it a faster and safer option for HVAC mechanical contractors, plumbers, and pipefitters working on pressurized systems in occupied buildings or tight spaces. The elbow is rated for Schedule 40 and standard wall pipe, giving it broad compatibility with common carbon steel pipe found on most job sites. It carries a pressure rating of 200 psi for water and general fluid applications, and 125 psi for fuel gas service, making it suitable for natural gas, propane, hydronic heating, and chilled water systems. The operating temperature range runs from -40 degrees Fahrenheit to 180 degrees Fahrenheit, covering most commercial mechanical system conditions. The fitting features a nickel plated and zinc plated finish that provides corrosion resistance and extends service life in demanding environments. Press fittings in the MegaPress line are compatible with standard press tools from major manufacturers, and the built-in Smart Connect feature helps installers identify any unpressed connections during system pressure testing. This reduces the risk of missed connections before a system goes live. The 3 inch size fits large-diameter runs common in main distribution lines, mechanical room headers, and boiler connections. Trade professionals rely on this type of fitting to reduce labor time and meet tight project schedules without sacrificing joint integrity or system reliability.

• 90 degree elbow with press end connections for tool-driven, flame-free installation
• Rated 200 psi for standard applications and 125 psi for fuel gas service
• Compatible with Schedule 40 and standard wall carbon steel pipe in 3 inch nominal size

Product Highlights

The Viega MEGAPG90L3 MegaPress 6616XL elbow delivers reliable 90 degree direction changes in 3 inch carbon steel piping systems using fast, press-fit technology rated for both gas and fluid service across a wide temperature range.

Product Information

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: MEGAPG90L3

Technical Specifications

• Series: MegaPress Model 6616XL
• Fitting Type: 90 Degree Elbow
• Nominal Size: 3 inches
• Connection Style: Press End
• Pipe Compatibility: Schedule 40 and Standard Wall
• Pressure Rating (General Applications): 200 psi
• Pressure Rating (Fuel Gas): 125 psi
• Temperature Range: -40 to 180 degrees Fahrenheit
• Material: Carbon Steel
• Finish: Nickel Plated and Zinc Plated
• Origin: Import
