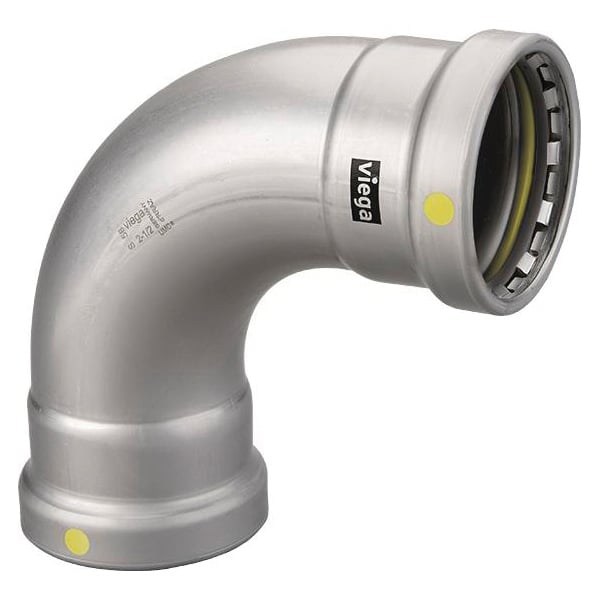

Viega MEGAPG90L212 Megapress 6616XL 90 Degree Press Elbow 2-1/2 Inches Carbon Steel

Product Description

The Viega MEGAPG90L212 is a MegaPress Series 6616XL 90 degree press elbow designed for professional plumbing and mechanical piping systems. This fitting is built for tradespeople who need a reliable, flame-free connection in tight schedules. It connects 2-1/2 inch nominal pipe using a press end style, which means no torch, no solder, and no open flame on the job site. That makes it a strong choice for retrofit work, occupied buildings, and anywhere hot work permits are a concern.

This elbow is manufactured from carbon steel with nickel plated and zinc plated finishes, giving it solid resistance to corrosion in typical mechanical system environments. It conforms to Schedule 40 and standard wall pipe dimensions, so it fits correctly with standard black iron and carbon steel pipe used throughout commercial and industrial plumbing installations.

The MEGAPG90L212 carries a pressure rating of 125 psi for fuel gas applications and 200 psi for all other uses, including hydronic heating, compressed air, and general mechanical piping. Its operating temperature range runs from -40 degrees Fahrenheit to 180 degrees Fahrenheit, covering most above-ground mechanical system conditions. HVAC contractors, pipefitters, and commercial plumbers working on hydronic systems, gas distribution, or compressed air lines will find this fitting well suited to their needs.

The 90 degree angle redirects flow cleanly and is available in a 2-1/2 inch size that matches common large-diameter branch and main line work. Viega press technology is recognized across the trade for speed and consistency, reducing installation time significantly compared to threaded or welded connections. This fitting is compatible with Viega MegaPress jaws and rings used with standard press tools from major manufacturers.

• 90 degree press elbow for flame-free, tool-pressed carbon steel pipe connections
• Rated for 125 psi fuel gas and 200 psi for other mechanical piping applications
• Compatible with Schedule 40 and standard wall 2-1/2 inch nominal carbon steel pipe

Product Highlights

The Viega MEGAPG90L212 MegaPress 6616XL elbow delivers a fast, code-compliant 90 degree connection for 2-1/2 inch carbon steel pipe without open flame, making it ideal for commercial plumbing, HVAC, and gas piping installations where efficiency and safety matter.

Product Information

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: MEGAPG90L212

Technical Specifications

• Series: MegaPress Model 6616XL
• Fitting Type: 90 Degree Elbow
• Nominal Size: 2-1/2 inches
• Connection Style: Press End
• Pipe Schedule Compatibility: SCH 40 and Standard Wall
• Material: Carbon Steel
• Finish: Nickel Plated and Zinc Plated
• Pressure Rating - Fuel Gas: 125 psi
• Pressure Rating - Other Applications: 200 psi
• Operating Temperature Range: -40 to 180 degrees Fahrenheit
• Origin: Import
