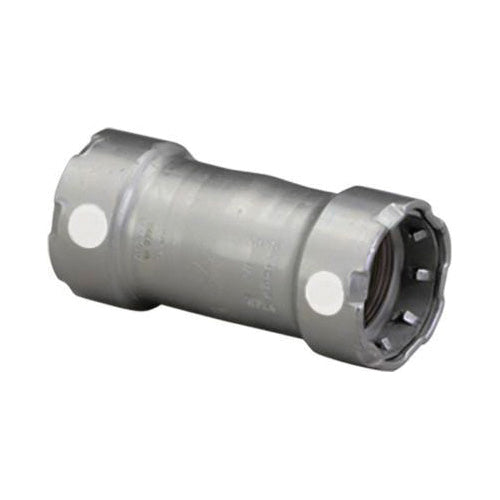

Viega MEGA84140 Megapress Model 5915.5 Press Coupling 1 Inch Carbon Steel

Product Description

The Viega MEGA84140 is a 1 inch nominal carbon steel press coupling from the MegaPress FKM system, Model 5915.5 series. This fitting is designed for cold press installation, meaning no open flame or welding is required to make a secure, leak-tight connection. That makes it a practical choice for HVAC technicians, mechanical contractors, and pipefitters working in occupied buildings or in areas where hot work permits are restricted. The press end style allows for fast, tool-based crimping that creates a permanent joint in seconds. This coupling connects two pipe segments of equal diameter in a straight run, making it one of the most commonly used fittings in any piping system. The Viega MegaPress FKM system is engineered for use in chilled water systems, hydronic heating systems, compressed air distribution, and fire sprinkler installations. These are demanding applications that require fittings capable of handling fluctuating pressures and a wide range of operating temperatures. This coupling carries a pressure rating of 200 psi and a temperature rating of 0 to 250 degrees Fahrenheit, covering the full operating range of most commercial and light industrial hydronic and compressed air systems. The fitting measures 3.29 inches in length and features a nickel plated and zinc plated finish that provides corrosion resistance in wet and exposed environments. Carbon steel construction gives this coupling the strength and durability needed for long-term performance in pressurized piping networks. The MegaPress platform is available in sizes from 1/2 inch through 4 inches and includes a wide range of configurations such as elbows, tees, reducers, adapters, caps, and unions, allowing contractors to build out complete systems using a single compatible fitting family.

• Press end style connection requires no welding, soldering, or open flame for installation
• Rated to 200 psi and 0 to 250 degrees Fahrenheit for use in hydronic, chilled water, compressed air, and fire sprinkler systems
• Carbon steel body with nickel plated and zinc plated finish for strength and corrosion resistance

Product Highlights

The Viega MEGA84140 MegaPress press coupling delivers fast, reliable connections for 1 inch carbon steel piping in demanding commercial and industrial applications. Its tool-pressed installation method reduces labor time and eliminates the need for hot work in the field.

Product Information

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: MEGA84140

Technical Specifications

• Series: Model 5915.5
• Nominal Size: 1 inch
• Fitting Type: Coupling
• End Style: Press
• Material: Carbon Steel
• Finish: Nickel Plated and Zinc Plated
• Pressure Rating: 200 psi
• Temperature Rating: 0 to 250 degrees Fahrenheit
• Length: 3.29 inches
• Domestic or Import: Import
