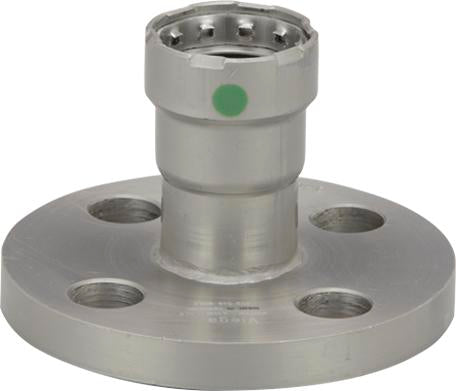

Viega Mega Press 25765 CS FLG w/EPDM 3/4

Product Description

The Viega MEGA PRESS 25765 adapter flange is 3/4 IN nominal, press X FNPT connection, and constructed of carbon steel. It measures 2.6 IN in length and has a maximum pressure of 200 PSI. It is suitable for use in temperatures ranging from -20 to 250 DEG F.

• 3/4 IN Nominal Size
• Press X FNPT Connection
• Includes EPDM Sealing Elements

Product Highlights

The Viega MegaPress adapter flange is made of carbon steel and has a maximum pressure of 200 PSI.

Product Information

Standard Information

• Brand: VIEGA MEGA PRESS
• Manufacturer Part Number: 25765

Technical Specifications

• Sub Brand: MegaPress®
• Item Name: Adapter Flange
• Series/Model: 4859.5
• Nominal Size: 3/4 IN
• Connection Type: Press X FNPT
• Length: 2.6 IN
• Material: Carbon Steel
• Maximum Pressure: 200 PSI
• Temperature Rating: -20 - 250 DEG F
• Industry Standards: UL 213, FM 1920, IAPMO PS117, ICC LC1002, CRN #OA14541.6, ABS, GL, NFPA 13,13D, 13R, 31, 54 and 58, ASME B31
• Additional Specifications: Includes: EPDM Sealing Elements
• Viega Part#: 25765
• Size: 3/4
• Category: FLANGE
