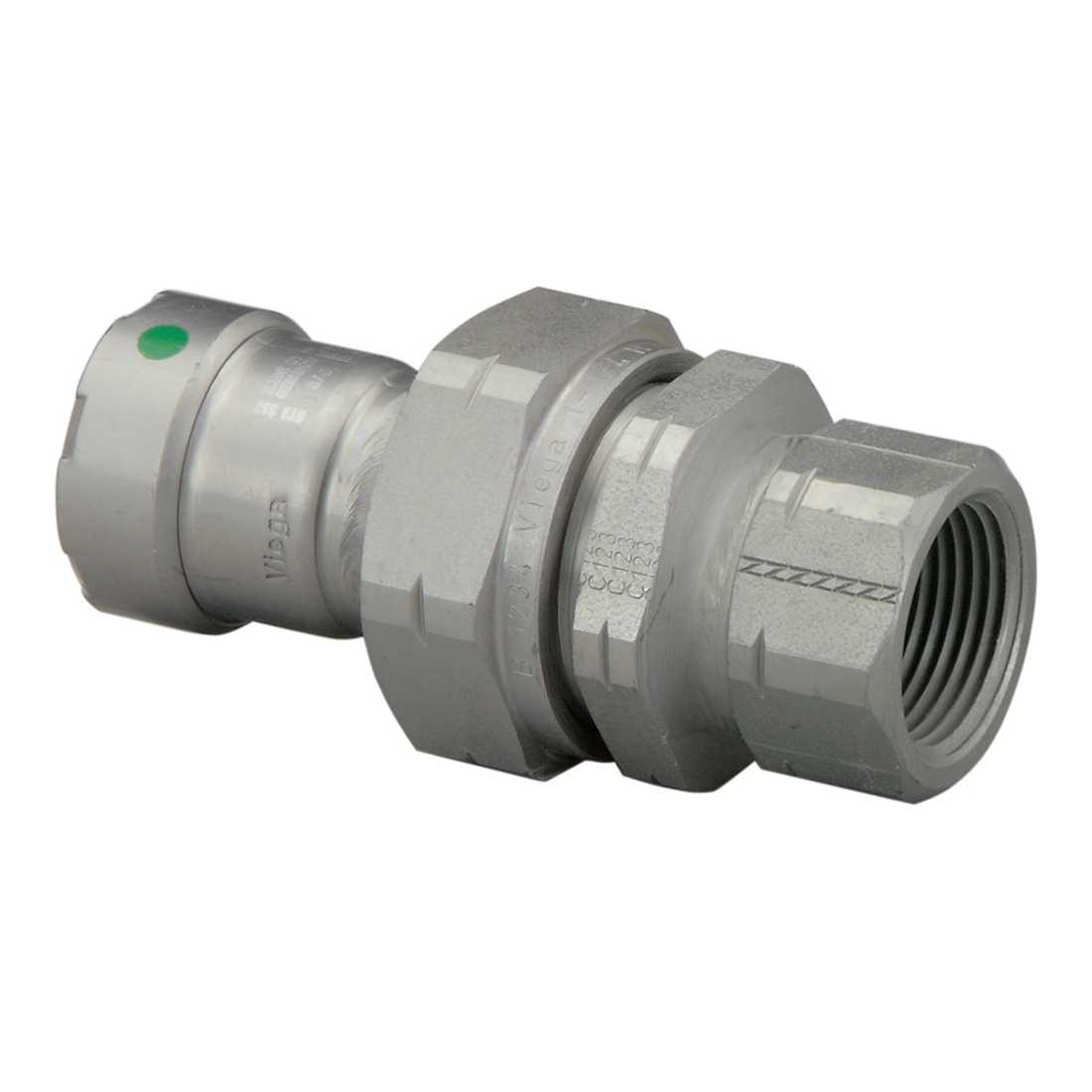

Viega Mega Press 25665 Union, 1-1/4 in

Product Description

The Viega MegaPress® 25665 is a carbon steel press system union that can be utilized with Schedule 5 to Schedule 40 black iron pipe. These fittings reduce installation time and eliminate messy cutting oils, making secure press connections in less than seven seconds. Connections can be made wet or dry. Includes EPDM Sealing Elements.

• For use with SCH 5 to SCH 40 carbon steel piping system
• Makes secure press connections in less than seven seconds
• No oil or heavy threading equipment needed

Product Highlights

The Viega MegaPress union is for use with carbon steel piping systems, offering fast and secure connections without the need for oil or threading equipment.

Product Information

Standard Information

• Brand: VIEGA MEGA PRESS
• Manufacturer Part Number: 25665
• Country of Origin: DE

Technical Specifications

• Size: 1-1/4 in
• Fitting/Connector Type: Union
• Material: Carbon Steel
• End Style: Press x FNPT
• Temperature Rating: -4 to 250 deg F
• Pressure Rating: 200 psi
• Domestic Import: Import
• Manufacturer: Viega
• Category: MegaPress Press Fittings
• Connection Type: Press X FPT
• Industry Standards: UL 213, FM 1920, IAPMO PS117, ICC LC1002, DNV, CRN #OA14541.6, ABS, GL, LR, CAL Fire, NFPA 13, 13D, 13R, 31, 54 and 58, ASME B31
• Item Name: Union
• Length: 4 IN
• Maximum Pressure: 200 PSI
• Nominal Size: 1-1/4 IN
• Series/Model: 4862
• Sub Brand: MegaPress®
• Manufacturer Item Number: 25665
• UPC: 30691514256659
