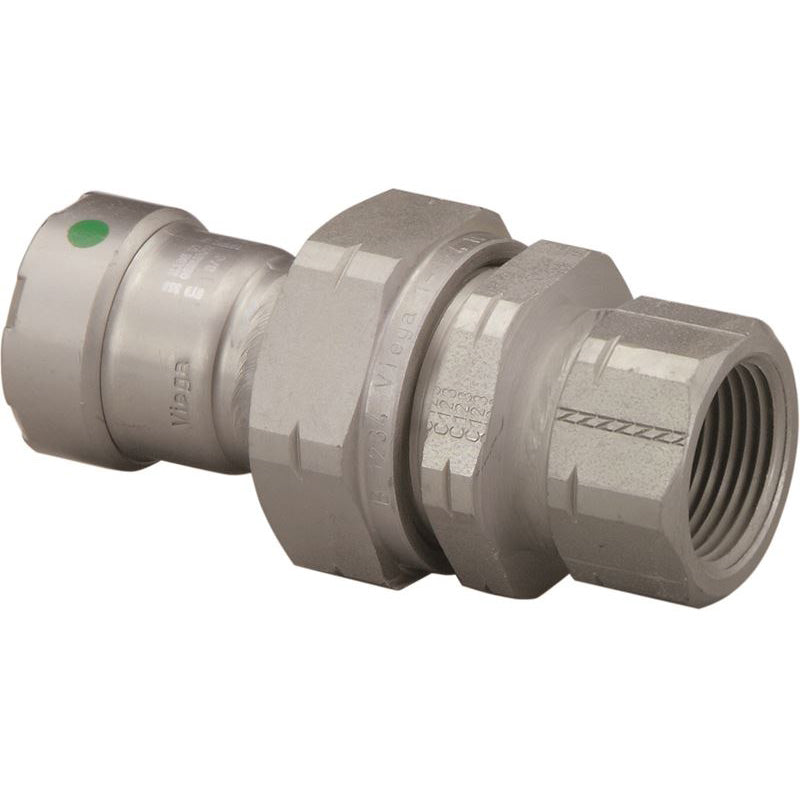

Viega Mega Press 25650 1/2 inches Press X Female Black Union

Product Description

The Viega MegaPress 25650 is a carbon steel press system for 1/2" fittings. It offers installation cost and time savings compared to welding and is suitable for Schedule 5 to Schedule 40 carbon steel. Approved for many applications, it is available in sizes 1/2" to 4" with an FKM or EPDM sealing element. It eliminates cleanup and reduces callbacks compared to welding.

• Carbon steel press system
• Installation cost savings
• Installation time savings
• Includes Viega Smart Connect technology

Product Highlights

The Viega MegaPress fitting includes Viega Smart Connect technology to help identify unpressed connections.

Product Information

Standard Information

• Brand: VIEGA MEGA PRESS
• Manufacturer Part Number: 25650
• Country of Origin: United States

Technical Specifications

• Application: Air/Water
• End Connection: Press X Female Thread
• Fitting Size: 1/2"
• Fitting Type: Union
• Manufacturer Name: Viega
• Material: Carbon Steel
• OPV Part#: VCMPFU04
• Viega Part#: 25650
• Size: 1/2X1/2
• Category: FEMALE UNION
• Brand: VIEGA
• MPN: 25650-CL
• UPC: Does Not Apply
• Country of Origin: United States
• Length: 2-7/8 IN
• Maximum Pressure: 200 PSI
• Nominal Size: 1/2 IN
• Series/Model: 4862
• Sub Brand: MegaPress®
• Temperature Rating: 0 - 250 DEG F
• Industry Standards: UL 213, FM 1920, IAPMO PS117, ICC LC1002, DNV, CRN #OA14541.6, ABS, GL, LR, CAL Fire, NFPA 13, 13D, 13R, 31, 54 and 58, ASME B31
