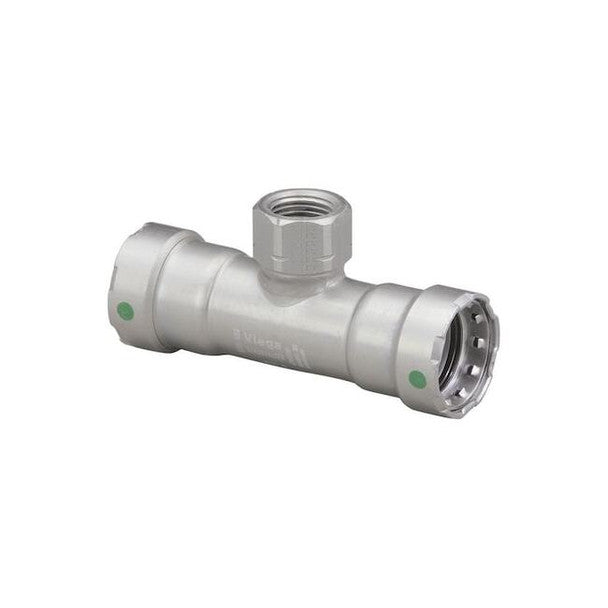

Viega Mega Press 25505 Tee P x P x FPT - Model 4817.2

Product Description

The VIEGA MEGA PRESS 25505 Tee features a press connection and female pipe thread, constructed from carbon steel with EPDM sealing elements. This MegaPress Tee is designed with Smart Connect technology. It can be utilized with Schedule 5 to Schedule 40 black iron pipe, reducing installation time.

• Smart Connect feature
• Carbon steel construction
• Press connection, female pipe thread
• EPDM sealing elements

Product Highlights

The MegaPress Tee is suitable for air and non-potable water applications. It is designed for secure press connections and eliminates the need for messy cutting oils.

Product Information

Standard Information

• Brand: VIEGA MEGA PRESS
• Manufacturer Part Number: 25505
• Country of Origin: Import

Technical Specifications

• Material: Carbon steel
• Connection Type: Press connection, female pipe thread
• Components: EPDM sealing elements
• Feature: Smart Connect feature
• Brand: VIEGA
• MPN: 25505
• Domestic/Import: Import
• End Style: Press x Press x FNPT
• Fitting/Connector Type: Tee
• Nominal Size: 1-1/4 x 1-1/4 x 3/4 In
• Pressure Rating: 200 psi
• Temperature Rating: -4 to 250 deg F
• Application: Air, Non-Potable Water
• Fitting Side A Connection Type: Press-Fit
• Fitting Side B Connection Type: Press-Fit
• Fitting Side C Connection Type: FPT
• Fitting Material: Steel
• Fitting Side A Pipe Size: 1 1/4 in
• Fitting Side B Pipe Size: 1 1/4 in
• Fitting Side C Pipe Size: 3/4 in
• O-Ring Material: EPDM
• Specific Fitting Shape: Reducing Tee
• Finish/Coating: Zinc Nickel-Plated
• Overall Length: 6 15/32 in
