Viega Mega Press 25395 MegaPress Tee 2 x 2 x 1-1/4 In

Product Description

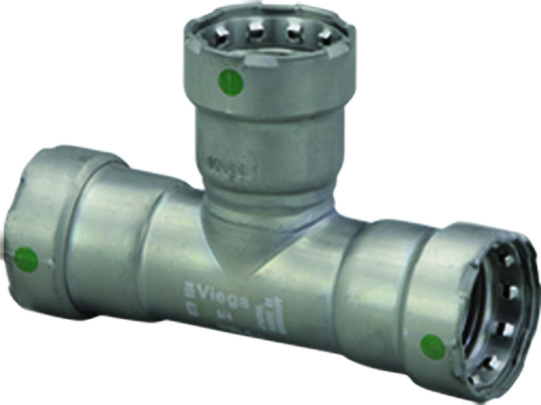

The VIEGA MEGA PRESS 25395 MegaPress Tee is a carbon steel press system fitting that can be utilized with Schedule 5 to Schedule 40 black iron pipe. These fittings reduce installation time and eliminate messy cutting oils. The tee features press connections and EPDM sealing elements.

• Smart Connect feature
• Carbon steel material
• Makes secure press connections in less than seven seconds

Product Highlights

This MegaPress tee is suitable for various applications including fire sprinkler, hydronic, and low-pressure steam systems. It requires no oil or heavy threading equipment.

Product Information

Standard Information

• Brand: VIEGA MEGA PRESS
• Manufacturer Part Number: 25395
• Country of Origin: United States

Technical Specifications

• Smart Connect feature: Yes
• Material: Carbon Steel
• Connection Type: Press connection
• Components: EPDM sealing elements
• End Style: Press
• Fitting/Connector Type: Tee
• Nominal Size: 2 x 2 x 1-1/4 In
• Temperature Rating: 0 to 250 Deg F
• Brand: VIEGA
• MPN: 25395
• Applicable Standard: ABS, CRN 0A14541.5 A/B, IAPMO PS117, ICC-ES PMG-1124, ULC/ORD 213, ICC, NFPA 13/13D/13R, TSSA/ASME B31.1/B31.3/B31.9, FM 1920
• Application: Chilled Water Distribution, Compressed Air, Hydronic Heating, Fire Protection, Low-Pressure Steam, Fire Sprinkler System, Industrial Gas, Vacuum, Schedule 5 to 40 Piping System
• End Connection: MegaPress x MegaPress x MegaPress
• Pressure Rating: 200 PSI
• Type: Reducing
• Material Type: carbon steel
• Model Number: 4818
• Batteries Included: No
• Hazmat: No
