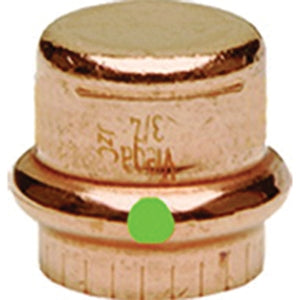

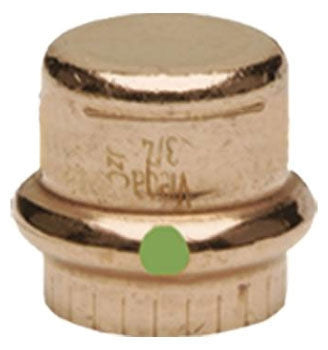

Viega 77717 ProPress Copper Cap 3/4-Inch Plumbing Fittings

Product Description

The Viega 77717 ProPress Copper Cap is a top choice for professional sealing in plumbing systems. This cap, measuring three-fourths inch, is designed for easy and secure press connections, enhancing efficiency in any plumbing installation.

• Lead-free copper construction ensures safe water quality.
• Smart Connect technology detects unpressed connections.
• Rated for up to 200 PSI, suitable for a wide range of temperatures from zero to 250 degrees Fahrenheit.

Product Highlights

This cap is widely recognized for its reliable performance in both residential and commercial plumbing systems. The quick press-fit connection significantly reduces installation time and labor, eliminating the need for soldering.

Product Information

Standard Information

• Manufacturer: Viega
• MPN: 77717

Technical Specifications

• Material: Copper

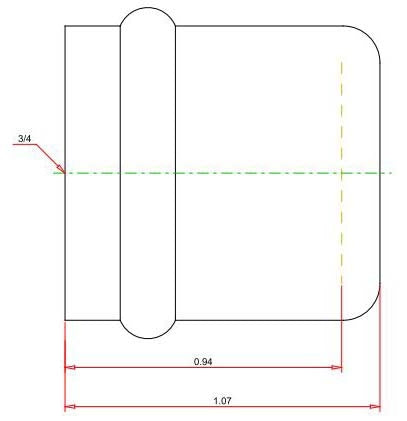

• Size: 3/4 Inch
• Pressure Rating: 200 PSI
• Temperature Rating: Zero to 250 degrees Fahrenheit
• Connection Type: ProPress
• Inclusions: EPDM Sealing Element
• Standards: NSF 61G, IAPMO PS117, UL 213, FM Class 1920, ICC LC 1002, CSA MSE-13
