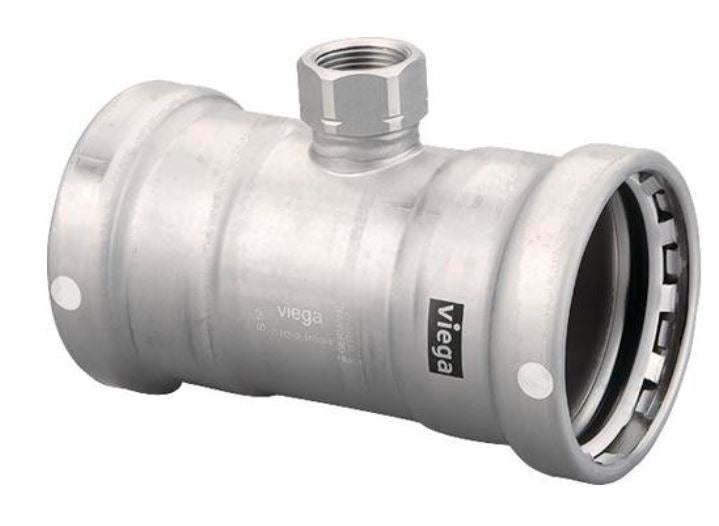

Viega 98420 MegaPress Tee (2-1/2 x 2-1/2 x 3/4)

Product Description

Viega 98420 is a MegaPress tee constructed of 316 stainless steel with two press-fit connections and a 3/4 in female pipe thread outlet. The fitting uses an FKM sealing element and is designed for use with the Viega MegaPress press-fit system; it includes pre-applied FKM thread sealant. Typical applications include compressed air, hydronics, industrial gases, and marine systems, with a maximum operating pressure of 200 psig and max temperature of 250°F.

• Connections: two press-fit ports (nominal 2-1/2 in) and one 3/4 in female pipe thread (FPT).
• Material and seals: 316 stainless steel body with FKM O-ring and pre-applied FKM thread sealant.
• Ratings and dimensions: max operating pressure 200 psig, max temperature 250°F, overall length about 6.3 in, weight approximately 2.31 lb.

Product Highlights

316 stainless MegaPress tee P x P x FPT with FKM seal; 200 psig / 250°F rating.

Product Information

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: 98420
• Country of Origin: Germany
